• ALDERON SMART PANEL DUPLEX TIME DOSING CONTROL PANEL (120/230V, 0-20FLA) - Part Number 1316

ALDERON SMART PANEL DUPLEX TIME DOSING CONTROL PANEL (120/230V, 0-20FLA)

Print

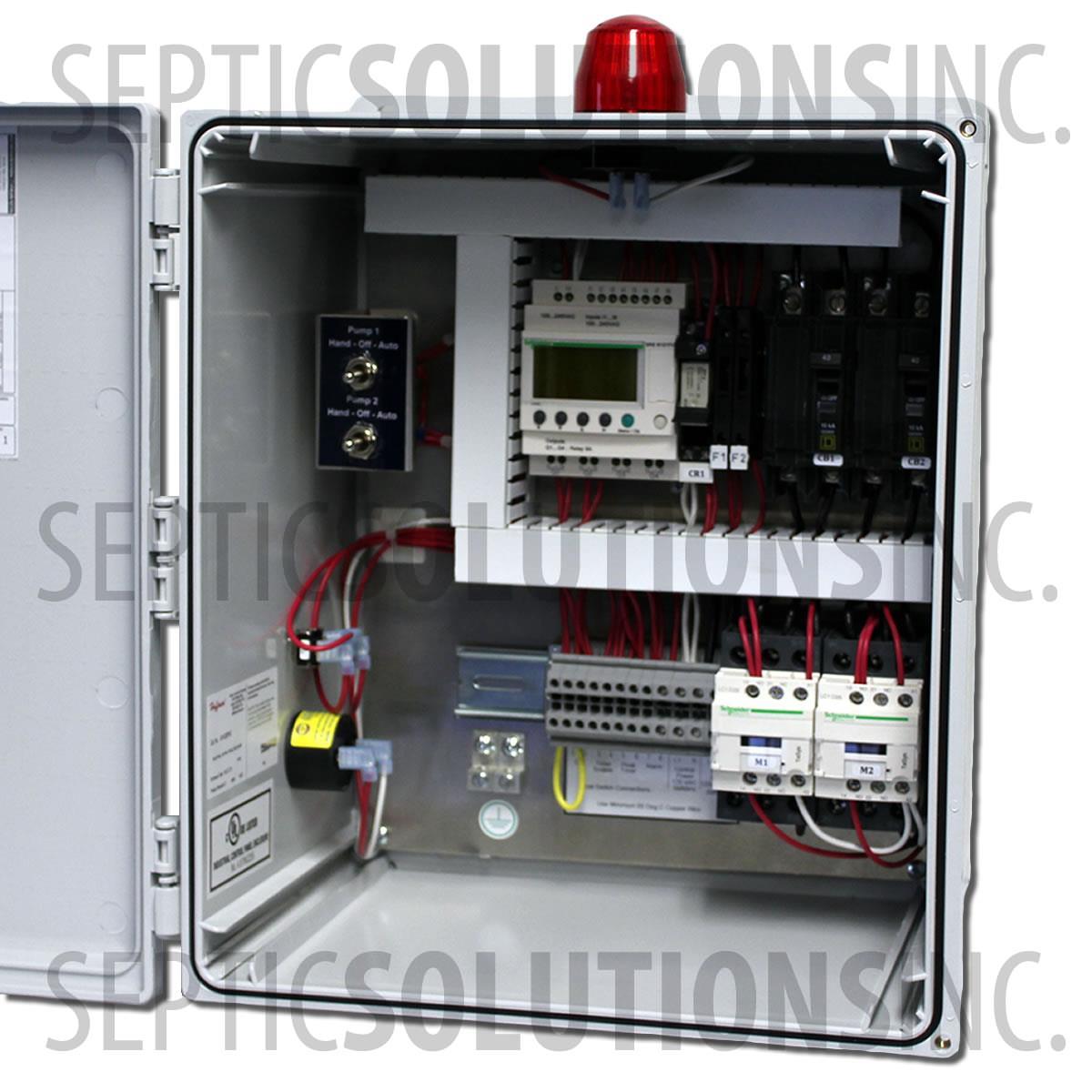

The Alderon Smart™ Panel is designed to control and monitor a duplex system with two submersible pumps. Includes pump circuitry, high water alarm, and 2 mechanical float switches for Timer Enable and Alarm controls. A progammable Smart controller monitors the time dosing function.

Made In USANEMA 4XUL Listed

Discontinued

$1325.00MSRP: $2057.26

Item #:1316

Manufacturer: Alderon

SEPTIC SOLUTIONS HAS DISCONTINUED
THIS ITEM FROM OUR INVENTORY

  • 120/230VAC, Single Phase, 0-20 FLA
  • (2) Mechanical Floats w/ 20ft Cords - Timer Enable, High Water Alarm
  • Programmable Smart Controller For Time Dosing Function
  • Programmable Timed Doses, Programmable Timer Override
  • Elapsed Time Meter, Event Cycle Counter in Smart Controller
  • 360 degree red alarm light, High decible alarm buzzer (100 dB)
  • Automatic Alternating Relay
  • Pump Hand/Off/Auto heavy duty toggle
  • Alarm On/Test/Mute heavy duty toggle
  • Field wiring terminal strips
  • IEC contactors (2,000,000 cycle rating)
  • Motor circuit breaker
  • 3 amp control/alarm fuses
  • Dimensions: 13.00' W x 18.00'' T x 9.50'' D
  • NEMA 4X Rated Enclosure, UL 508A Listed
  • Three Year Warranty
  • Works in Both Outdoor and Indoor Applications
  • Controlling A Duplex Submersible Pump Station
  • Time Dosing Applications
  • Repeat Cycle Timer Standard
  • Elapsed Time Meter and Cycle Counter Optional Additions
  • Monitoring Liquid Levels
  • Alerts of Submersible Pump Failure
  • Includes 3 Mechanical Float Switches
  • NEMA 4X Enclosure
  • UL 508A Listing
