Myers ME45 1/2 HP Submersible Effluent Pump

Print

87 MAX GPM, 44 FT MAX HEAD, 2" DISCHARGE

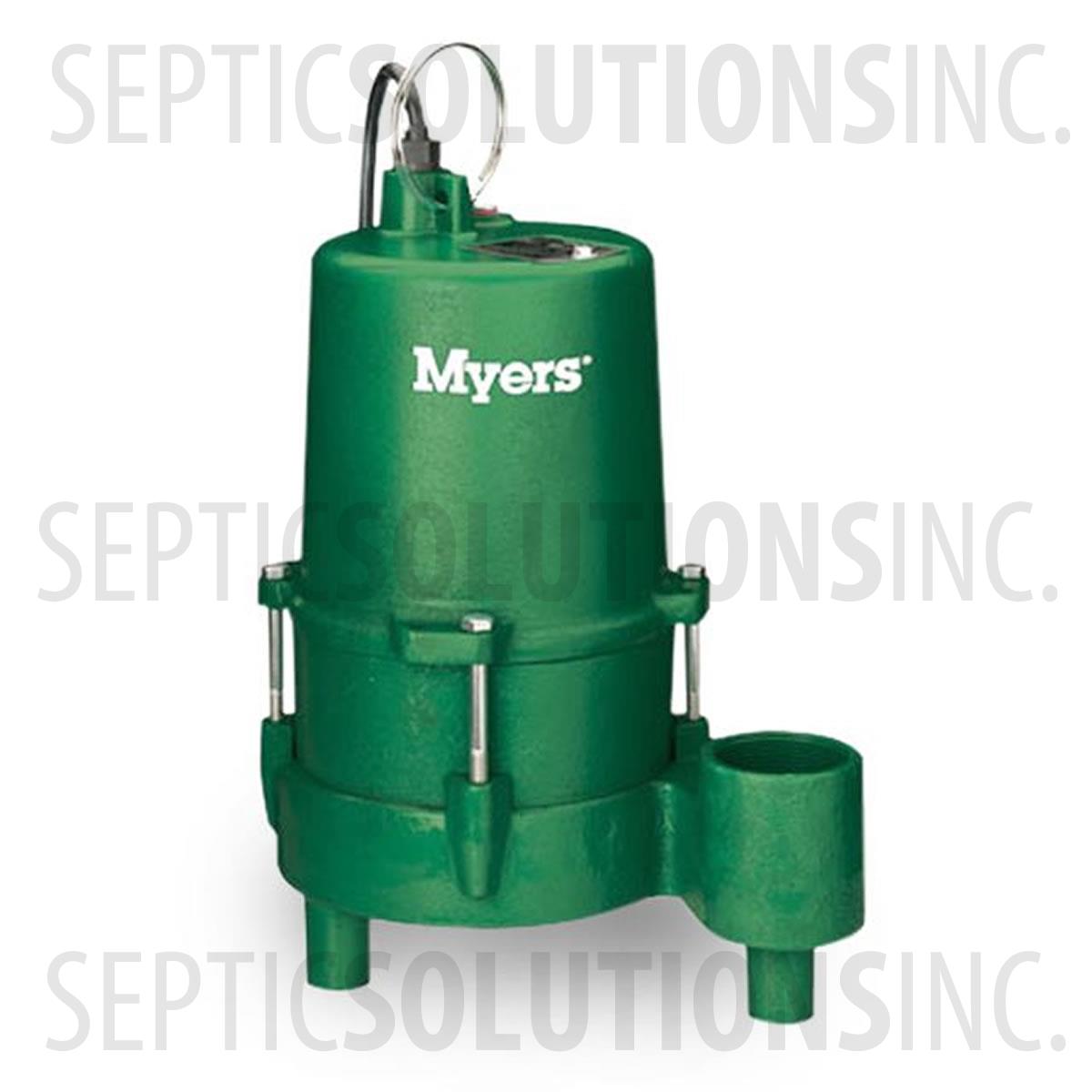

The Myers ME45 Cast Iron submersible effluent pump features a rugged fully cast iron design with a heavy duty two vane cast iron impeller with solids handling up to 3/4''. Automatic operation is achieved with a wide angle mechanical float switch with a piggyback plug.

CSA

Discontinued

$355.00MSRP: $415.00

Item #:ME45AC-11

Manufacturer: Myers Pumps

SEPTIC SOLUTIONS HAS DISCONTINUED
THIS ITEM FROM OUR INVENTORY

Myers ME45 Specifications

  • Model ME45AC-11
  • 1/2HP, 115VAC, 9.0A, 60 Hz
  • 60 GPM @ 20ft of Head Pressure
  • Shut Off: 44ft, Max GPM: 87
  • 2'' NPT Vertical Female Discharge, 3/4'' Solids Handling
  • Two Vane Cast Iron Impeller
  • Complete Rugged Cast Iron Design
  • Includes 20' Power Cord with Plug
  • Includes 20' Wide Angle Mechanical Float Switch with Piggyback Plug
  • Dimensions: 11.19'' L x 7.87'' W x 12.59'' T
  • One Year Warranty

Myers ME45 Series Applications

An effluent pump is typically used in septic tank applications. Effluent is the gray wastewater that remains after the solids settle out. - See more at: http://www.libertypumps.com/Category/effluent-pumps#sthash.s9eLcImw.dpuf

An effluent pump is typically used in septic tank applications. Effluent is the gray wastewater that remains after the solids settle out. These pumps can handle smaller solids up to 3/4’’ in size. These units are normally used to pump discharge from a septic tank or an aerobic system to a drain field, secondary treatment system, or surface discharging point.

  • STEP Systems
  • LPP Systems
  • Mound Systems
  • Liquid Waste Transfer
  • Commercial Sump Applications
  • Effluent and Wastewater Removal

Myers ME45 1/2 HP Submersible Effluent Pump Downloadable Documents

FileName
ME45-BrochureViewDownload
