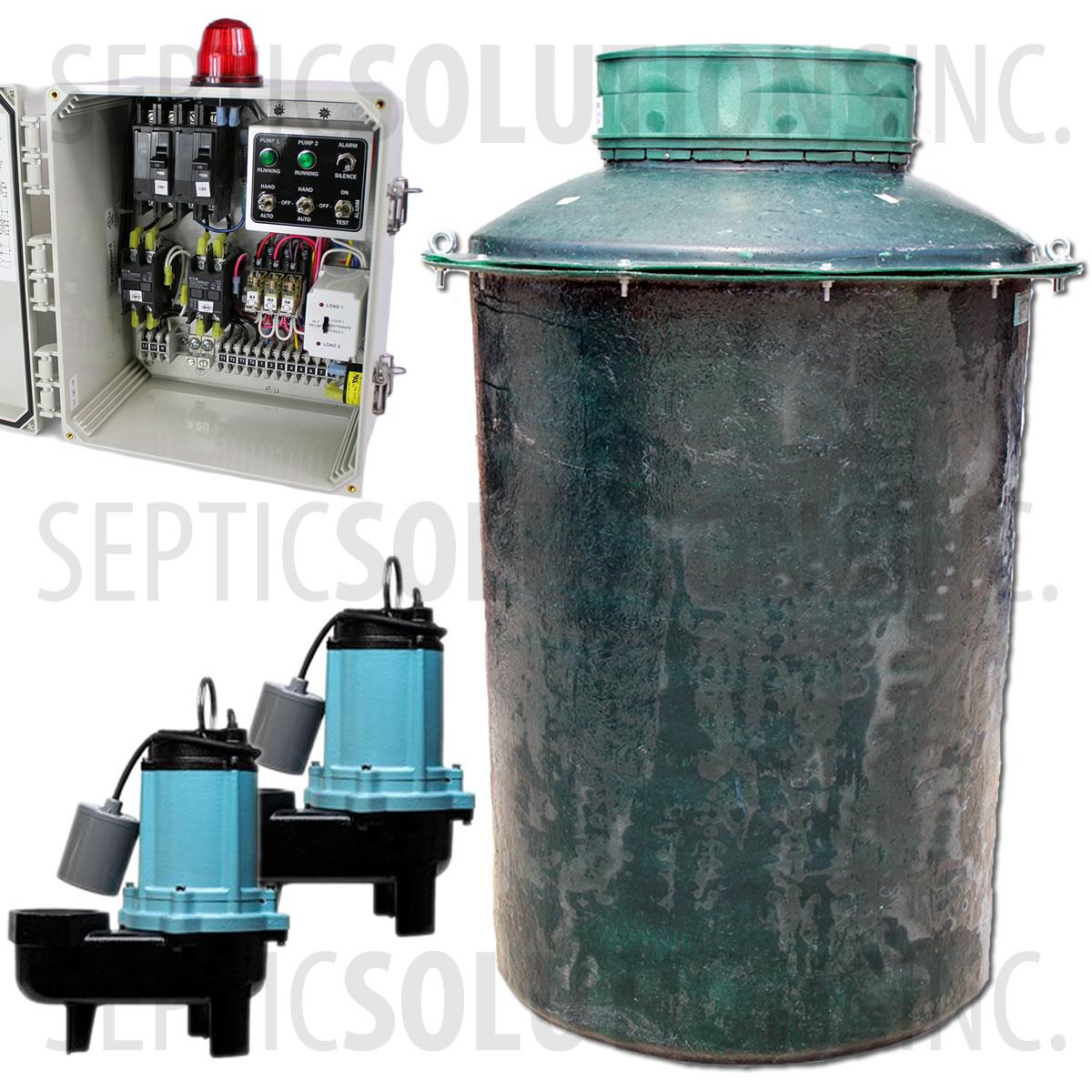

300 Gallon Duplex Fiberglass Pump Station with (2) 1/2 HP Sewage Ejector Pumps and Alternating Control Panel

Print

FOR RAW SEWAGE PUMPING APPLICATIONS

This 300 gallon fiberglass duplex pump station comes pre-assembled and ready to install with all of the components needed to install a direct burial in-ground sewage lift station. The typical application for this package is to pump sewage and wastewater from a household to the septic system or city sewer.

Pump Station Features:

  • 57'' x 67'' Basin with 300 Gallon Capacity
  • (2) 1/2 HP Little Giant Sewage Ejector Pumps with 2'' Discharge
  • 120 GPM @ 5ft of Head, Shut Off: 25ft of Head
  • 115VAC, 11.0A, 60Hz, 1 Phase
  • SPI SDC12B Duplex Control Panel with Alarm

THIS ITEM SHIPS VIA LTL FREIGHT. PLEASE CALL 1-877-925-5132 TO GET A SHIPPING QUOTE OR PLACE AN ORDER.

Built To Order Within 1-2 Business Days

$3849.00MSRP: $4299.00

Item #:300FPT-12SDUP

Manufacturer: Septic Solutions

THIS ITEM SHIPS LTL FREIGHT.
PLEASE EMAIL SALES@SEPTICSOLUTIONS.COM FOR A QUOTE OR CALL (877)-925-5132 TO PLACE AN ORDER.

300 GALLON FIBERGLASS TANK

  • 57'' Diameter, 67'' Tall
  • Heavy Duty Fiberglass Designed For Direct Burial
  • 24'' Diameter Polylok Access Cover
  • Risers Available To Bring Access To Grade
  • 4'' Inlet Hole with Grommet
  • 2'' SCH 40 Discharge Pipe Sealed with Grommet
  • Cord Seals For Power and Float

LITTLE GIANT 1/2 HP SEWAGE EJECTOR PUMP

  • Model: 10SC-CIA-RF
  • 1/2 HP, 115VAC, 11.0A, 60Hz, 1 Phase
  • 80 GPM @ 15ft of Head Pressure
  • Shut Off: 25ft, Max GPM: 120
  • 2'' NPT Vertical Female Discharge, 2'' Solids Handling
  • Includes 20ft Mechanical Float Switch for Automatic Operation
  • Three Year Warranty
  • Dimensions: 10.60''L x 8.60'' W x 14.00''H

#50A506 DUPLEX CONTROL PANEL

  • 120/240VAC, Single Phase, 0-20 FLA
  • (3) Mechanical Floats w/ 20ft Cords
  • 360 degree red alarm light, High decible audible buzzer (100 dB)
  • Automatic Alternating Relay
  • Pump run light indicator
  • Pump Hand/Off/Auto heavy duty toggle
  • Alarm On/Test/Mute heavy duty toggle
  • Field wiring terminal strips
  • Two 2-pole definite purpose contactors (100,000 cycle rating)
  • Motor circuit breaker
  • 3 amp control/alarm fuses
  • Color Coded Wiring
  • Dimensions: 16.25'' W x 19.63'' T x 6.25'' D
  • NEMA 4X Enclosure, UL 508A Listed
  • Two Year Limited Warranty
This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.

    300 Gallon Duplex Pump Station with (2) 1/2 HP Sewage Pumps Downloadable Documents

    FileName
    300FPT-12SDUP_Spec1ViewDownload
    300FPT-12SDUP_Spec3ViewDownload
    511433_10sc_series_spec_sheetViewDownload
    Pump-Station-Backfill-InstructionsViewDownload
