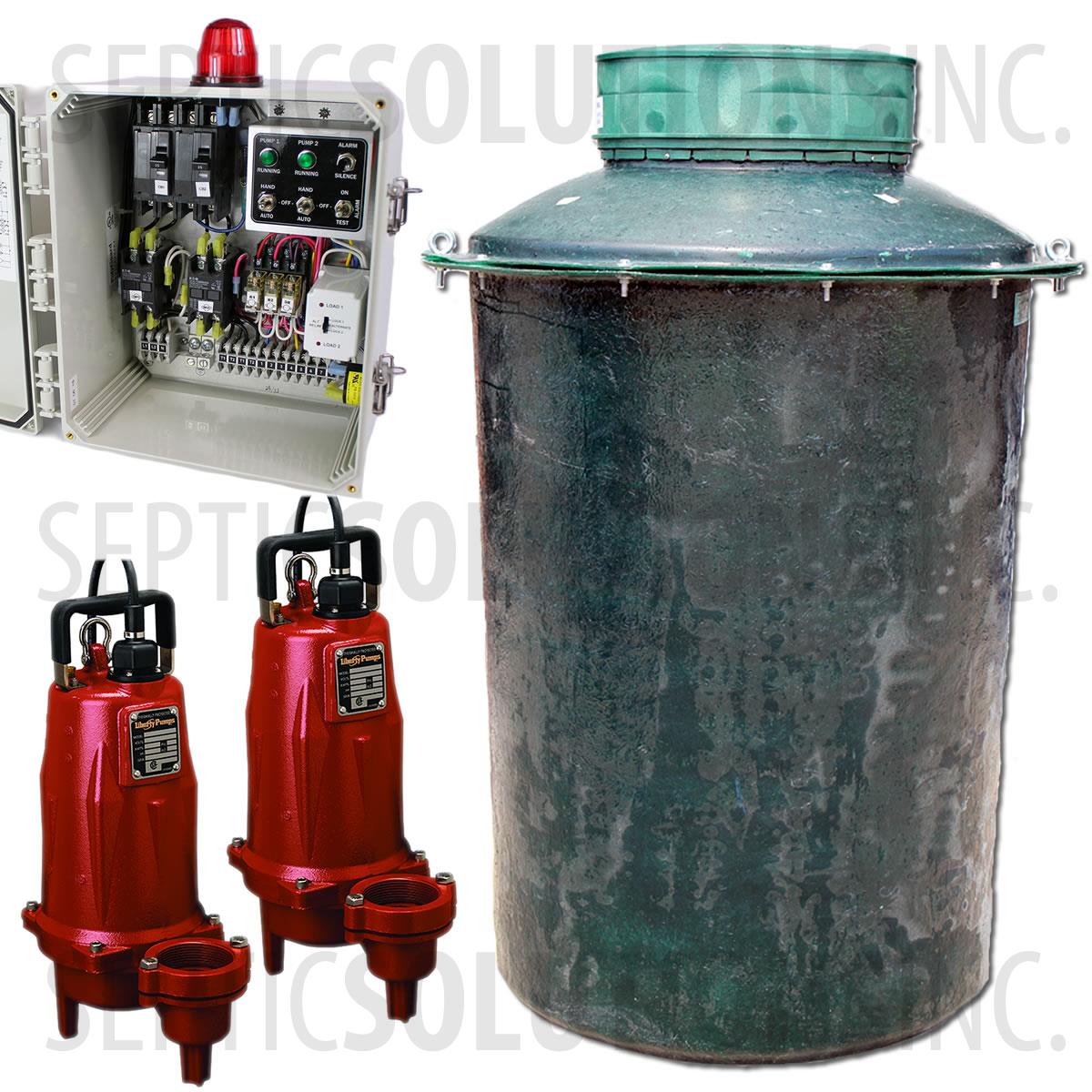

500 Gallon Duplex Fiberglass Pump Station with (2) 2.0 HP Liberty Sewage Ejector Pumps and Alternating Control Panel

500 GALLON FIBERGLASS TANK

• 70'' Diameter, 67'' Tall
• Heavy Duty Fiberglass Designed For Direct Burial
• 24'' Diameter Polylok Access Cover
• Risers Available To Bring Access To Grade
• 4'' Inlet Hole with Grommet
• 2'' SCH 40 Discharge Pipe Sealed with Grommet
• Cord Seals For Power and Float

Liberty LEH200-Series Specifications

• Model LEH202
• 2.0 HP, 230VAC, 18.0A, 60 Hz
• 120 GPM @ 50ft of Head Pressure
• 20' MINIMUM HEAD REQUIREMENT
• Shut Off: 83ft, Max GPM: 220
• 2'' NPT Vertical Female Discharge, 2'' Solids Handling
• Heavy Duty Cast Iron Construction
• 2-Vane Cast Iron Impeller

• Includes Quick-Disconnect 25' Power Cord with Plug

• Dimensions: 12.9'' L x 8.1'' W x 17.4'' T
• Three Year Warranty

#50A506 DUPLEX CONTROL PANEL

• 120/240VAC, Single Phase, 0-20 FLA
• (3) Mechanical Floats w/ 20ft Cords
• 360 degree red alarm light, High decible audible buzzer (100 dB)
• Automatic Alternating Relay
• Pump run light indicator
• Pump Hand/Off/Auto heavy duty toggle
• Alarm On/Test/Mute heavy duty toggle
• Field wiring terminal strips
• Two 2-pole definite purpose contactors (100,000 cycle rating)
• Motor circuit breaker
• 3 amp control/alarm fuses
• Color Coded Wiring
• Dimensions: 16.25'' W x 19.63'' T x 6.25'' D
• NEMA 4X Enclosure, UL 508A Listed
• Two Year Limited Warranty

This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.
