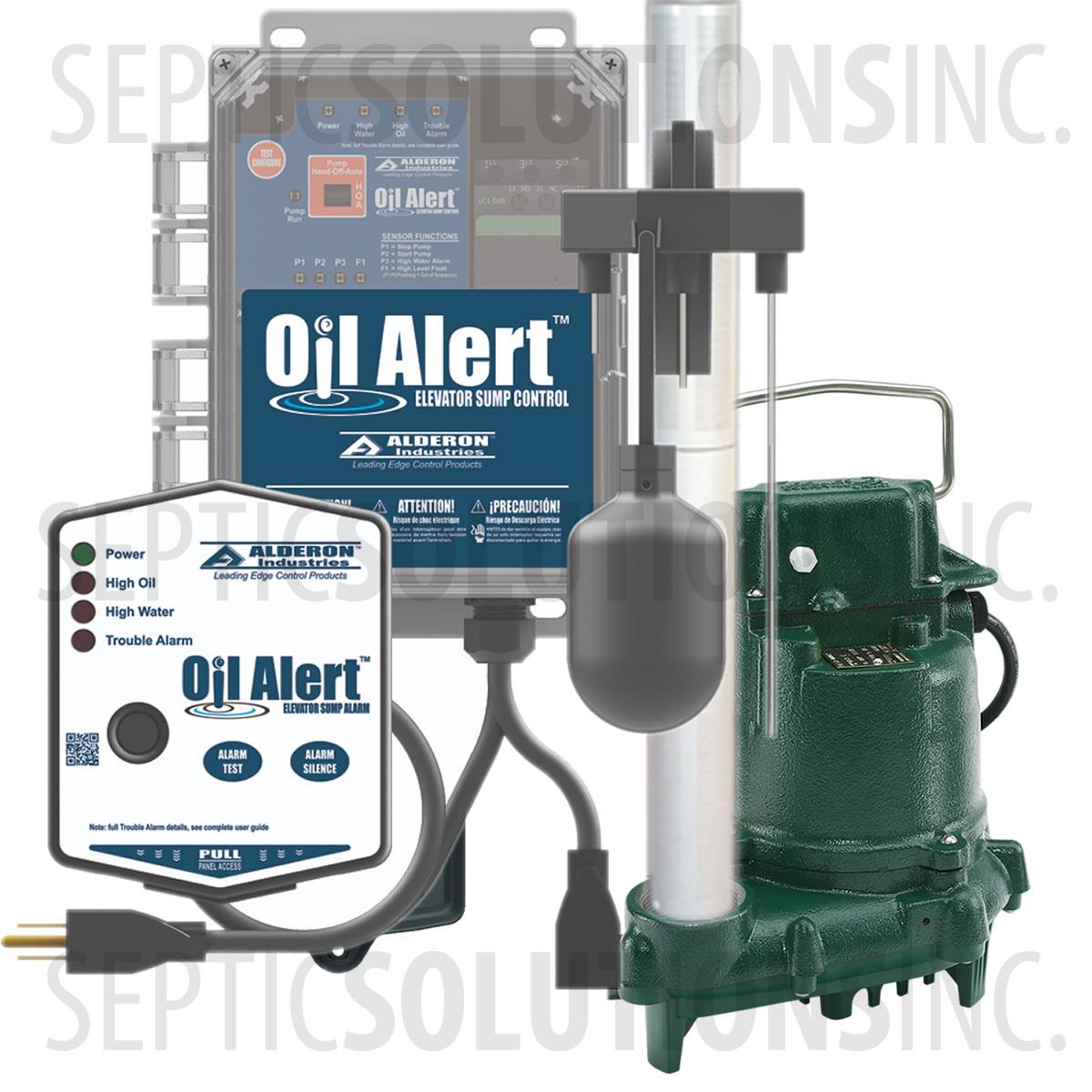

Elevator Sump System with 1/2 HP Zoeller 98 Series Sump Pump and Oil Detection System

1/2 HP SUMP PUMP, 23 FT MAX HEAD, 72 MAX GPM

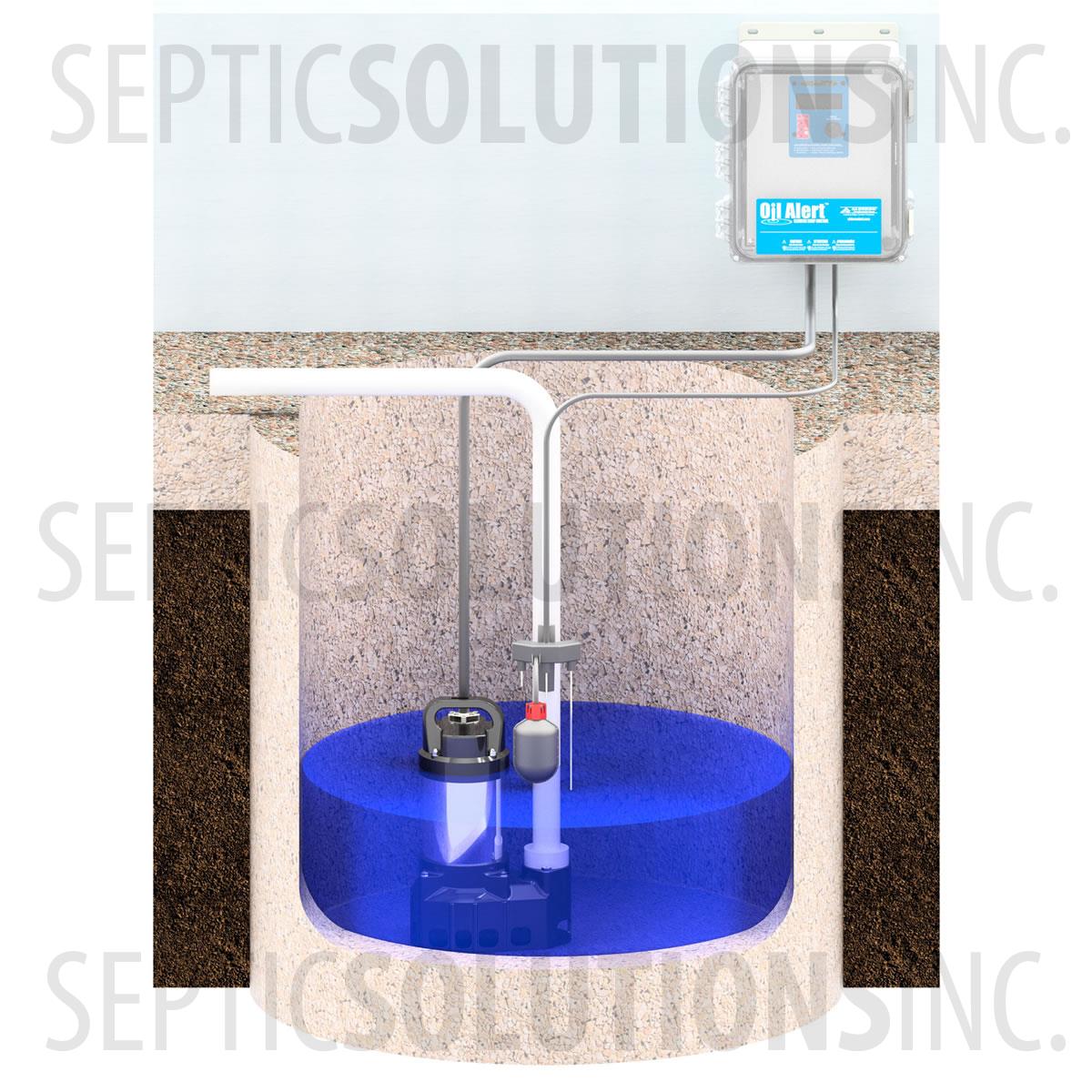

The Elevator Sump Water Removal System is used in elevator sump pits to remove water while retaining oil and other hydrocarbons. Water and oil fill the elevator sump pit. As the sump is filling, the oil will float on top of the water. This layer of oil will not be pumped from the tank. The water underneath the oil will be pumped out through the discharge pipe to the sewer or other proper disposal area.

In Stock

$1619.00MSRP: $2375.00

Item #:ELVBN98-7410

Manufacturer: Septic Solutions

ELVBN987410 Features
Product Documents

Zoeller BN98 Sump Pump Features

1/2 HP, 115VAC, 9.4A, 60 Hz
61 GPM @ 10 ft of Head Pressure
Shut Off: 23 ft, Max GPM: 72
1-1/2'' NPT Vertical Female Discharge, 1/2'' Solids Handling
Completely Cast Iron Construction
Three Year Warranty
Dimensions: 10.06'' L x 7.88'' W x 12.06'' T

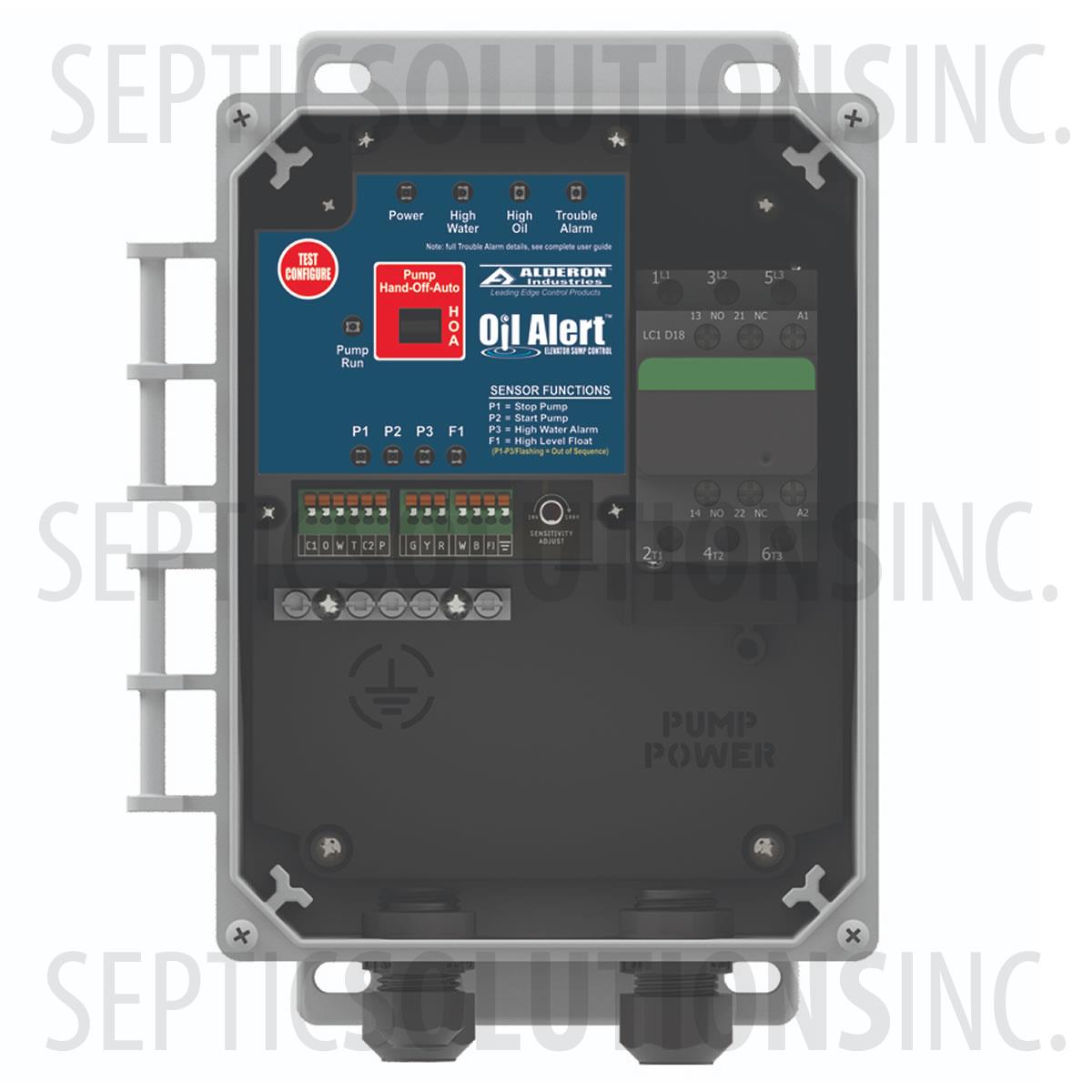

Oil Alert™ Control Features

120 VAC, Single Phase, 0-15 FLA
One Preset Level Sensor For Easy Installation
Operates With All Pumps Approved for Sump Pits
Remote Alarm Included
NEMA Type I Enclosure
ASME A17.1 COMPLIANT
Dimensions: 9.75'' H x 5.02'' W x 5.25'' D

Oil Alert™ Operation

On liquid rise, level reaches pump “start” probe to start the pump. Pump will remain on until level is below “off” probe. The “off” probe senses air or oil and turns the pump off so the oil layer will not be pumped out of the tank. If the level reaches alarm probe and mechanical float, the system will differentiate between water and oil and activate the remote alarm.
