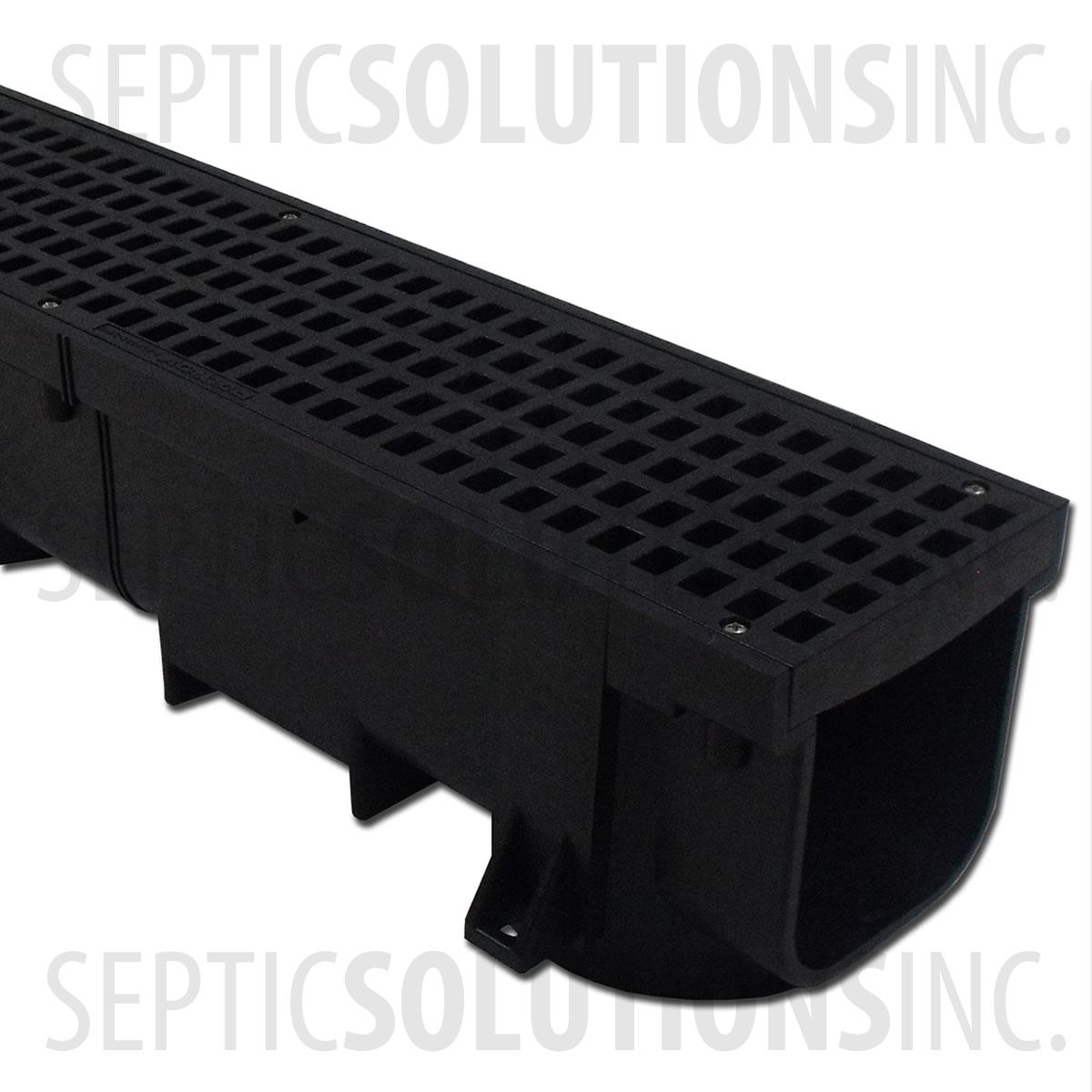

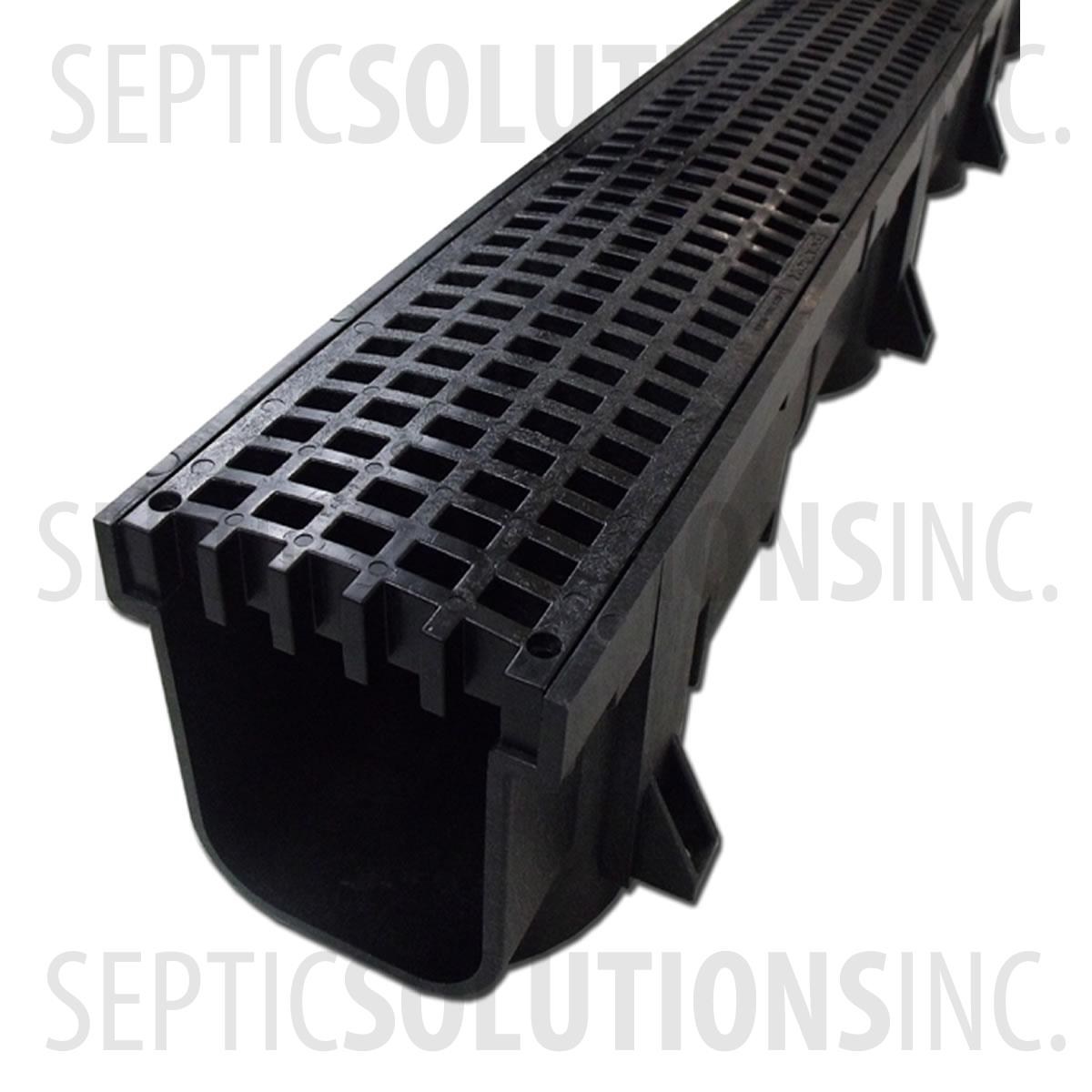

Polylok Heavy Duty Trench/Channel Drain - Six Pack of 4 ft Sections (BLACK)
PrintSIX PACK OF 4 FT SECTIONS

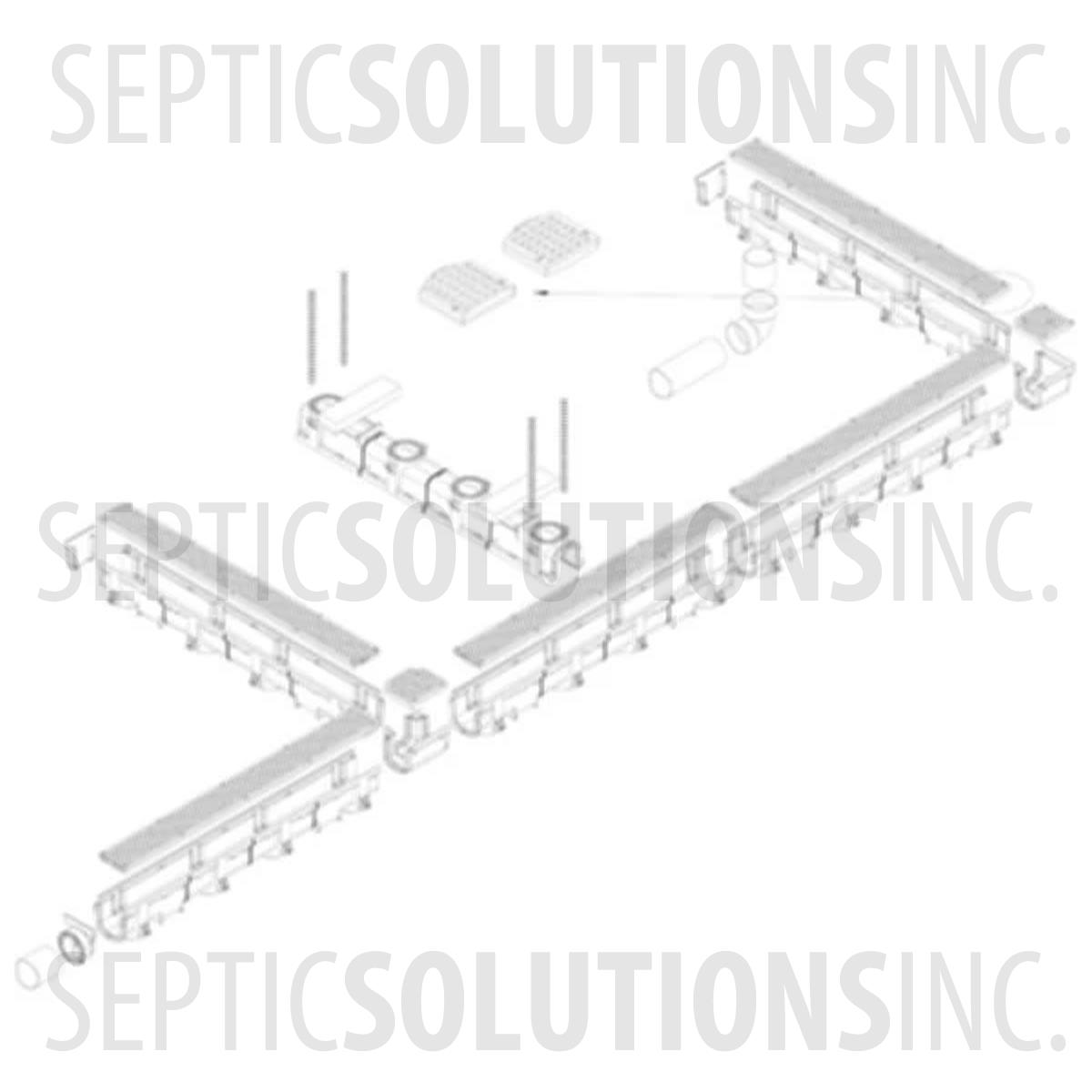

The Polylok Heavy Duty Trench/Channel Drain is engineered for the most flexibility in a heavy duty design. This channel drain can be H-20 wheel load rated when cast in reinforced concrete. It offers a modular design with interlocking components including 90 degree corners and Tees. Each section is 4' in length and comes with a reversible ADA compliant grate that can be either flat, or allow a 3/16'' convex surface.
In Stock
$414.00MSRP: $499.00
Item #:PL-90860-6
Manufacturer: Polylok
HEAVY DUTY TRENCH DRAIN SPECIFICATIONS
- Model: PL-90860 (BLACK)
- 4 ft Sections x 6 inches wide
- Can be cut every 12'' to reduce length (pre-marked from the factory)
- Grates are ADA compliant
- Grates are reversible with a flat side and a side with a 3/16'' convex
- Grates are fastened using provided #8 x 1-1/4'' stainless steel screws
- H-20 Wheel Load rating when cast in reinforced concrete
- Traffic speed not to exceed 20 mph. Not recommended for forklift traffic.
- Open and Closed End Caps available

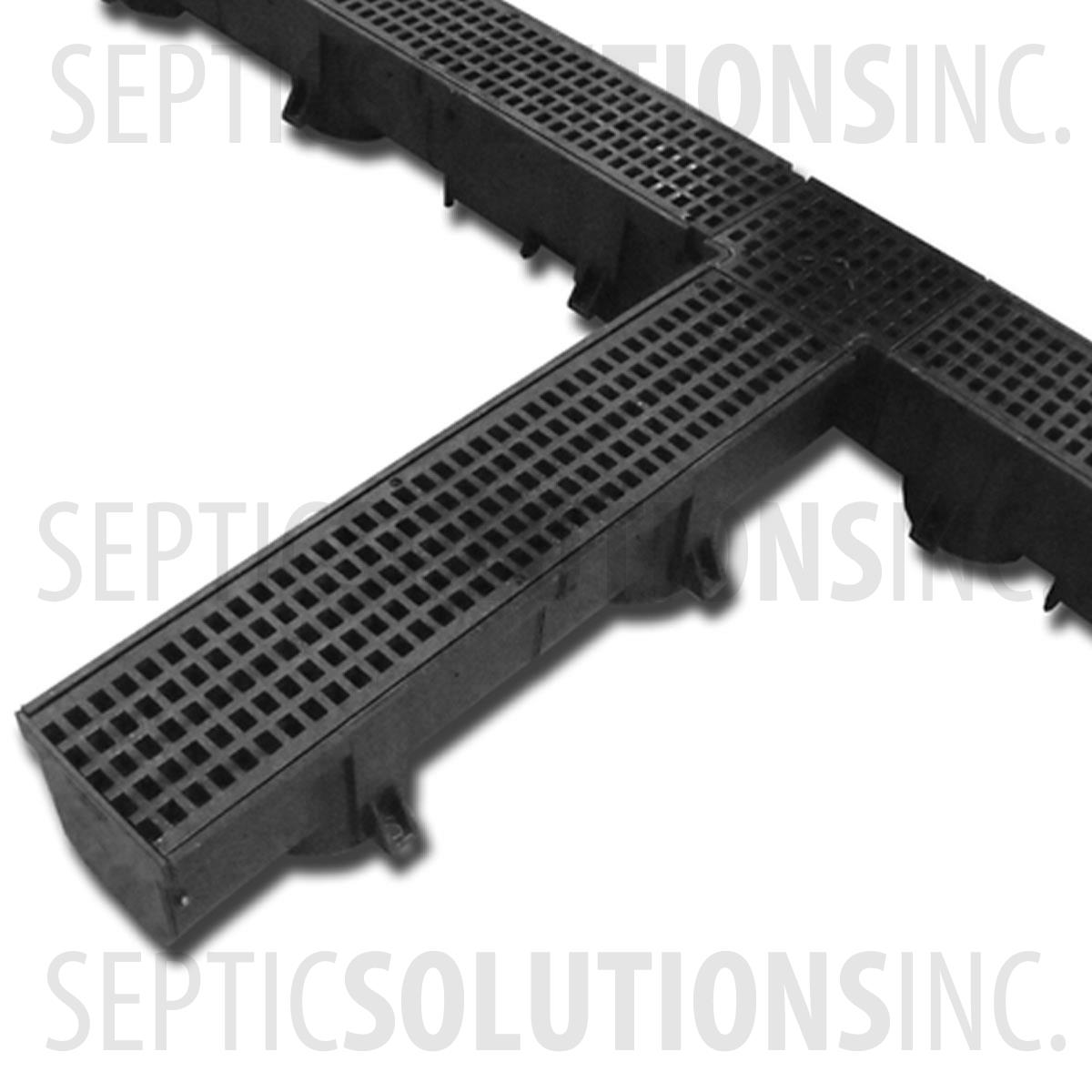

- 90 Degree Elbows and Tees available
- Each segment has 8 anchor positions to allow rebar to be installed to prevent floating
- 2x4's can easily be fastened to the base to aid in leveling and anchoring
- Each segment has four drainage ports to enable 3'' or 4'' SCH 40 or 4'' SDR35 connections
