• Pilot Series Control Duty Mechanical Float Switch with 10' Cord, Normally Closed - Part Number 20A603

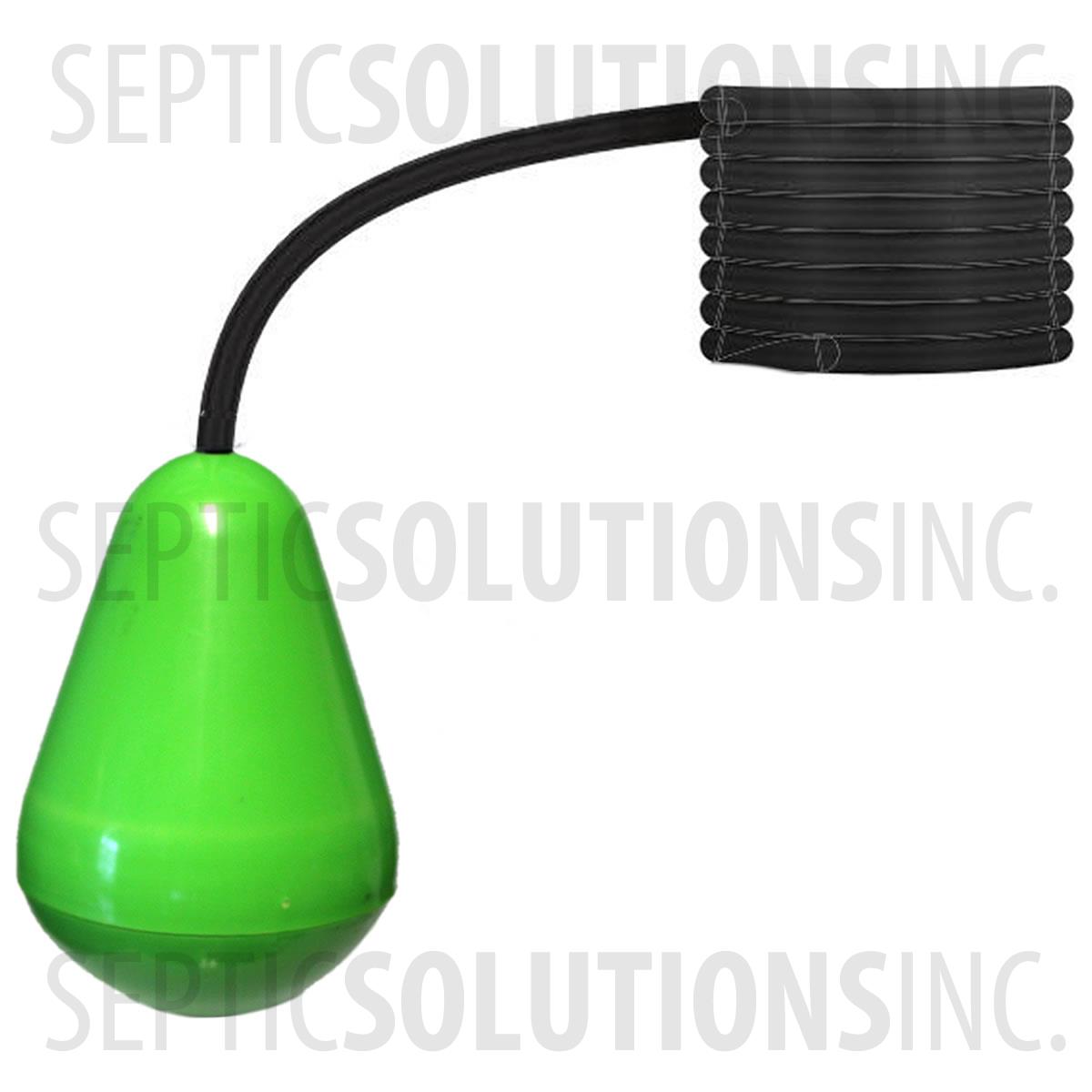

Pilot Series Control Duty Mechanical Float Switch with 10' Cord, Normally Closed

Print

The NEW E-Pilot Series foam filled mechanical float switches combine the reliability of mercury switches with the environmentally friendliness of mechanical switches to become one of the most reliable and versatile floats on the market! This pilot duty control switch has normally closed contacts designed for low level notifications. The switch is normally closed and is activated to "ON" in the lowered position.

CSARU

In Stock

$49.95MSRP: $59.00

Item #:20A603

Manufacturer: SPI

Float Clamp / Weight Options:

E-PILOT FEATURES

  • 75 Degree Wide Angle Mechanical Control Duty Float Switch
  • Activates at 45 degrees above horizontal, Deactivates at 30 degrees below horizontal
  • Foam Filled Mechanical Switch (Extreme Reliability with No Mercury!)
  • 10' Cord, No Plug
  • 5 Amp, 18/2 SJOW Wire, 120V/240V, No Plug
  • For Use With A Control Panel or High Water Alarm
  • SST Pipe Mount Assembly Included
  • UL Listed, CSA Listed, Heavy Duty Contacts

E-PILOT SPECIFICATIONS

  • Normally Closed Contacts For Filling Applications
  • Activates To ON In The Lowered Position
  • Designed For Use In Sewage and Wastewater Applications
  • For Use With Control Panel or Low Level Alarm
  • Custom Cord Lengths Available, Call 1-877-925-5132
