Polylok PL-625 Effluent Filter

Print

RATED TO FILTER FLOWS UP TO 8,000 GPD - 1/32'' FILTRATION

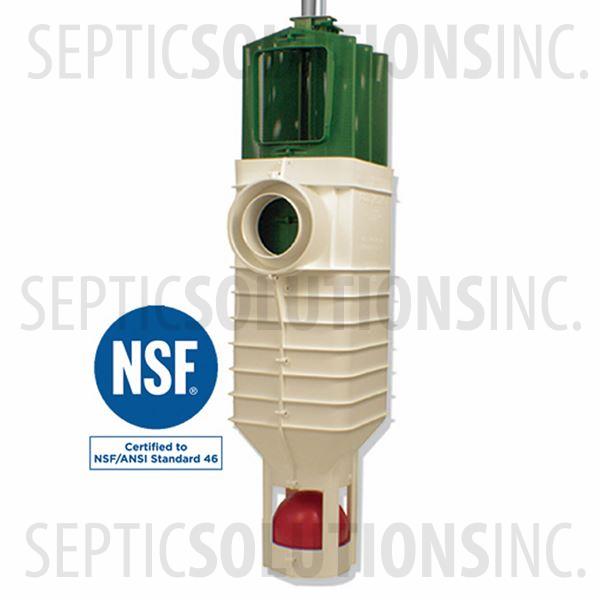

The Polylok PL-625 Effluent Filter System is an advanced effluent filter, the only design with an automatic shut off ball to prevent solids from leaving the tank when the filter is removed for cleaning.

In Stock

$439.00MSRP: $525.00

Item #:PL-625

Manufacturer: Polylok

  • Rated To Filter 8,000 Gallons Per Day
  • Over 625 Linear Feet of 1/32'' Filter Area
  • Gas/Solids Deflector Ball Prevents Solids From Entering The Filter
  • Flow Control Ball Shuts Off Effluent Flow During Cleaning
  • No Need To Pump The Tank To Clean The Filter
  • Simple To Install. Easy To Clean
  • NSF/ANSI Certified and Approved
  • Fits 4'' and 6'' Schedule 40 PVC Pipe
  • Dimensions: 14.34'' L x 11.59'' W x 33.02'' T
  • The PL-625 Effluent Filter will operate efficiently for several years under normal conditions before requiring cleaning.

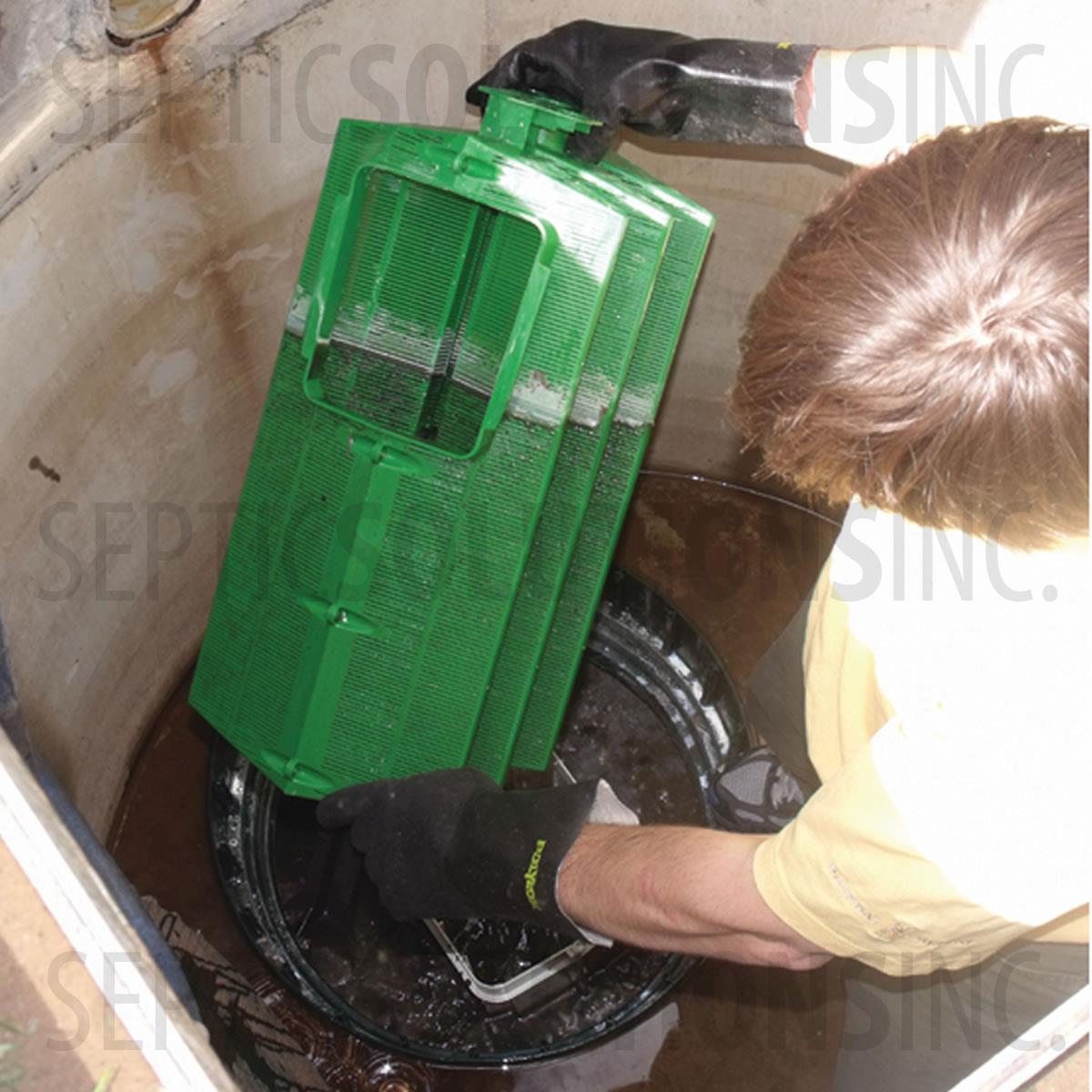

  • It is recommended that the filter be cleaned every time the tank is pumped or at least every three years.

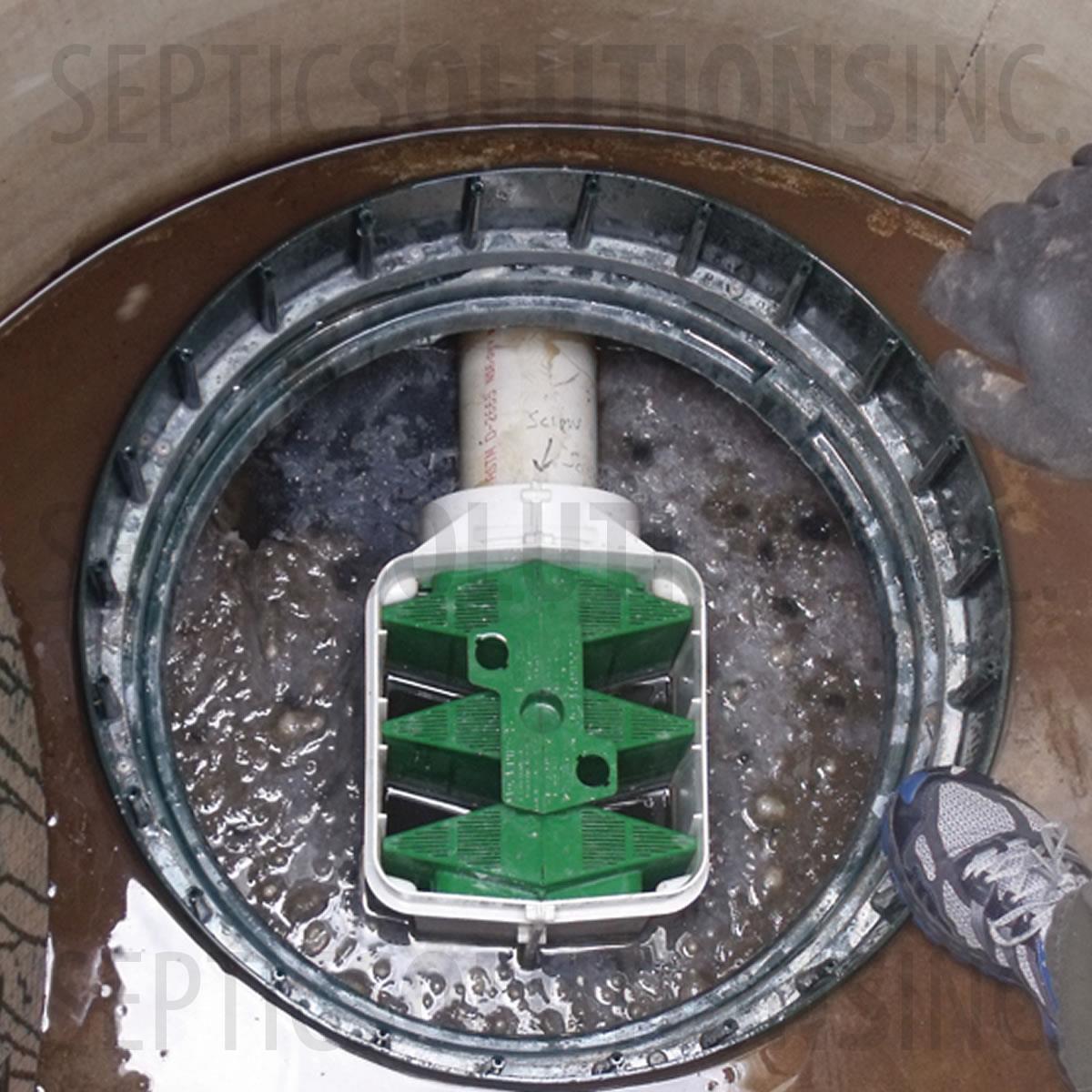

  • The PL-625 is ideal for residential waste flows up to 8,000 GPD. The filter easily installs in any new or existing 4'' outlet tee.
  • The modular design allows multiple filters to be attached together allowing for increased filtration.
  • Filter Alarm Switch available to warn when filter needs to be cleaned

Polylok PL-625 Effluent Filter Downloadable Documents

FileName
PL-525-625_SpecsViewDownload
PL625_InstallViewDownload
