• Liberty 250-Series 1/3 HP Cast Iron Submersible Sump Pump - Part Number 257

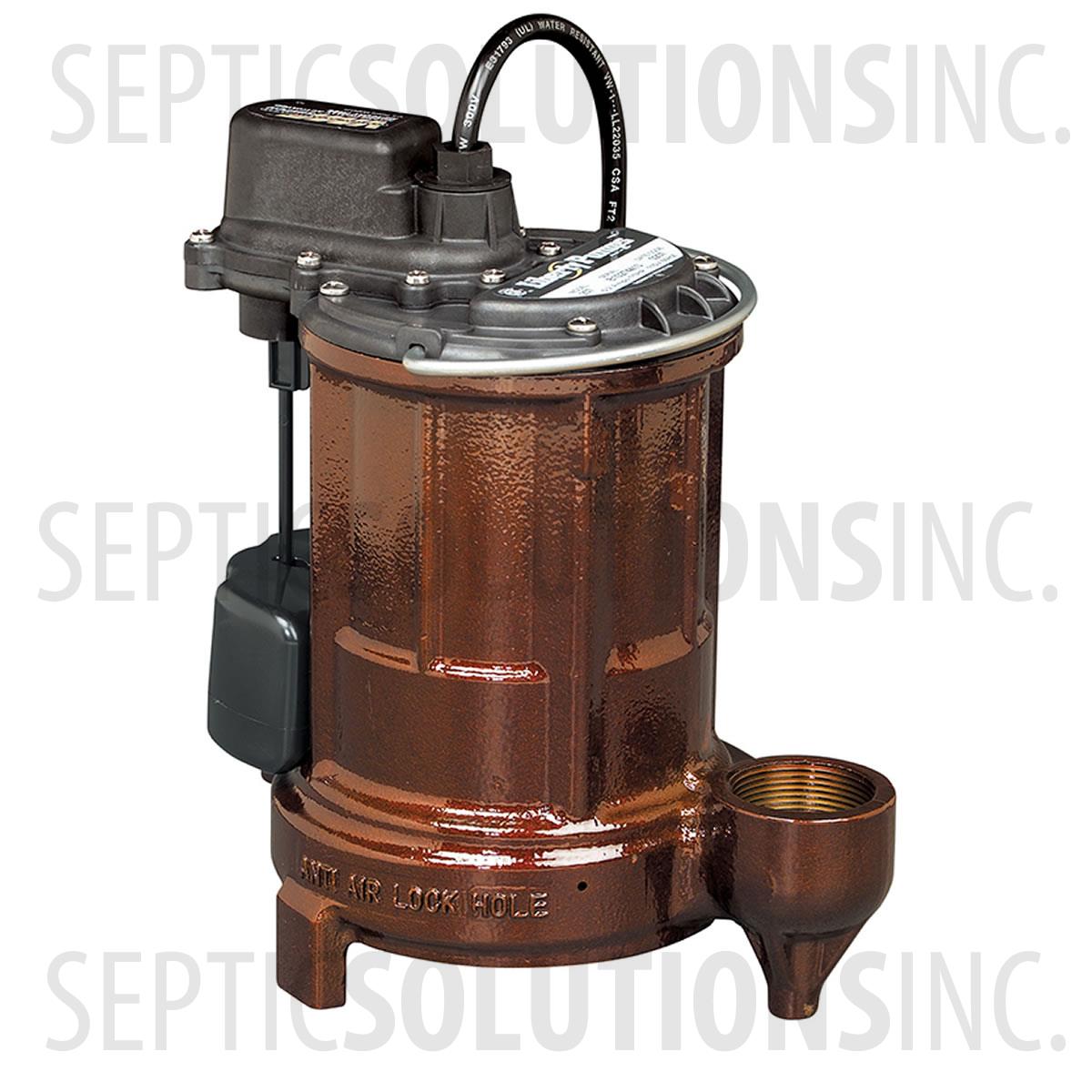

Liberty 250-Series 1/3 HP Cast Iron Submersible Sump Pump

Print

50 MAX GPM, 23 FT MAX HEAD, 1-1/2" DISCHARGE

The heavy duty cast iron 250-Series submersible sump pump from Liberty Pumps features an oil-filled motor with thermal overload protection, a heavy duty cast iron construction, and a vortex style impeller. This sump pump includes Liberty's VMF (Vertical Magnetic Float) switch and can be installed in sump pits as small as 10'' in diameter.

Assembled In USAPowder Coated Tough

In Stock

$210.75MSRP: $281.00

Item #:257

Manufacturer: Liberty Pumps

Liberty 250-Series Sump Pump Specifications

  • Model 257
  • 1/3 HP, 115VAC, 5.2A, 60 Hz
  • 40 GPM @ 10ft of Head Pressure
  • Shut Off: 23ft, Max GPM: 50
  • 1-1/2'' NPT Vertical Female Discharge, 3/8'' Solids Handling
  • Heavy Duty Cast Iron Construction
  • Vortex Thermoplastic Impeller
  • Includes 10' Power Cord with Plug
  • Includes Vertical Magnetic Float Switch
  • Dimensions: 6.5'' W x 9.50'' L x 10.70'' H
  • Three Year Warranty

Liberty 250-Series Sump Pump Applications

Liberty submersible sump pumps are used to remove drainage water collected in a sump basin or pit. The most common application is rainwater removal from basements and crawlspaces.

  • Rainwater and Drainage Water Removal
  • Basement Sump Pits
  • Crawlspace Sump Pits
  • Cellar Sump Pits
  • Storm Shelter Sump Pits

Liberty Pumps Submersible Sump Pumps

Liberty 250-Series 1/3 HP Cast Iron Submersible Sump Pump Downloadable Documents

FileName
257_FeaturesViewDownload
257_SpecificationsViewDownload
Liberty_SumpPump_InstallationViewDownload
