Alderon Check It Duplex Control Panel (120/240V, 0-20FLA)

Print

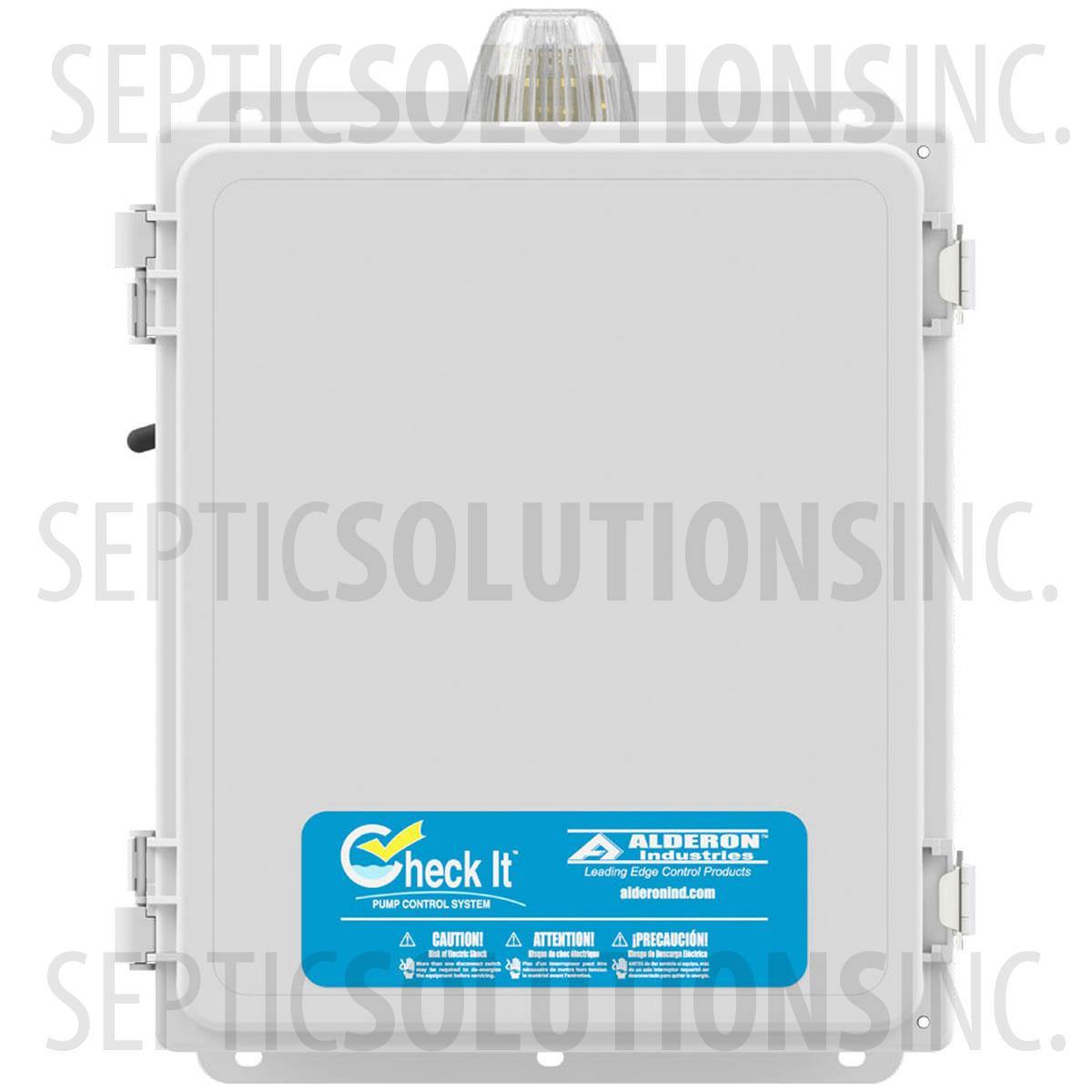

The Alderon Check It™ Duplex Control Panel is designed to control and monitor a pump station with two submersible pumps. This item includes circuitry for 2 submersible pumps, a built-in high water alarm, the Check It™ Self Diagnosing system, and (3) mechanical float switches for "OFF", "LEAD ON", and "ALARM" controls. The Alderon Check It™ Duplex Control Panel can handle up to (5) float switch inputs with the following functions: Low Alarm/Redundant Off, Lead On, Lag/High, High Level.

Made In USANEMA 4XUL Listed

In Stock

$1199.00MSRP: $1589.00

Item #:2010641

Manufacturer: Alderon

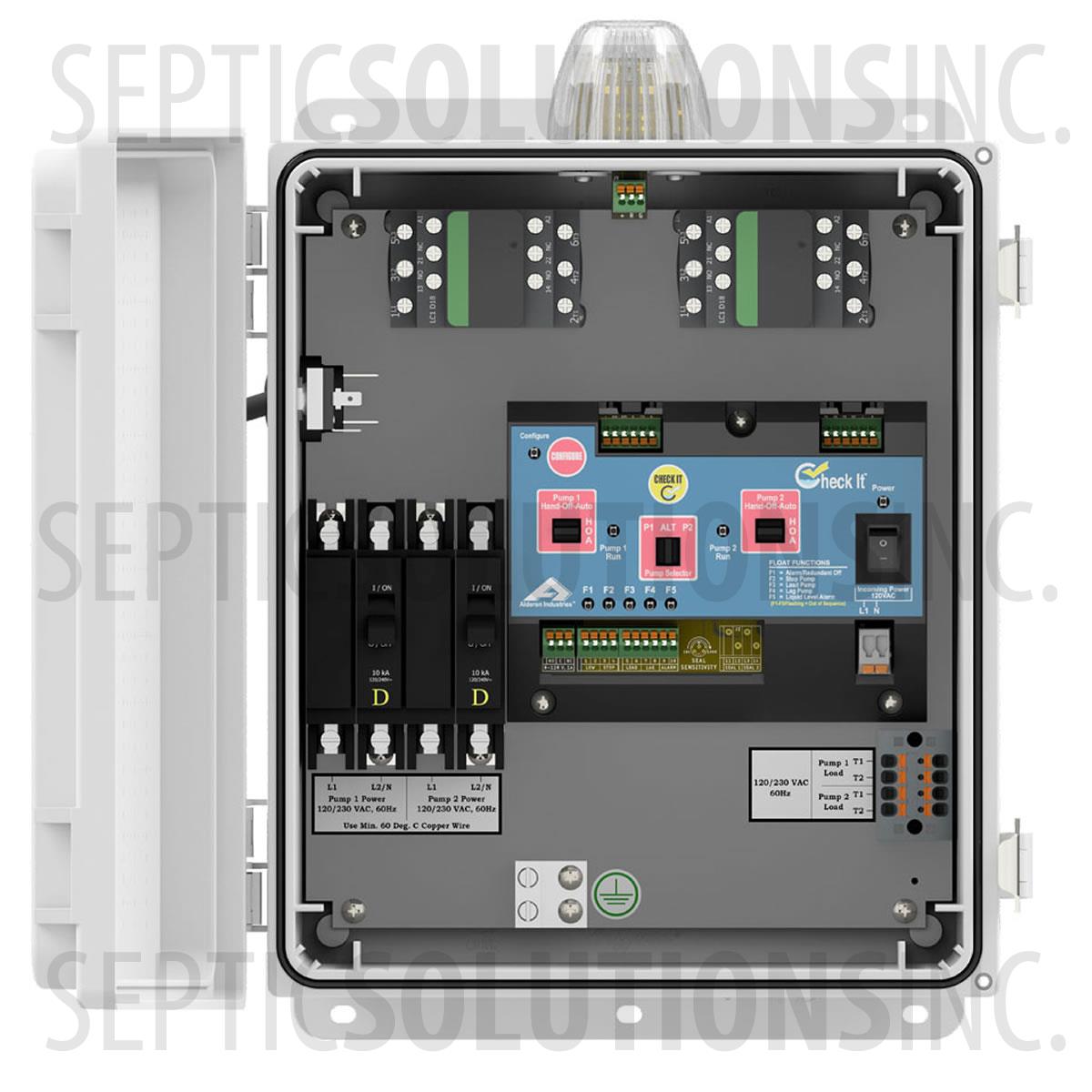

Alderon Duplex Control Specifications

  • 120/230VAC, Single Phase, 0-20 FLA
  • 120/230VAC Power Input for Pumps, 120VAC Power Input for Alarm/Control Circuit
  • (3) Mechanical Floats w/ 20ft Cords for OFF, LEAD ON, and ALARM controls
  • Up to (5) Floats Can Be Connected for Low Alarm/Redundant Off, Lead On, Lag On/High, and High Level Alert
  • Multi-Color LED Beacon: Green = Normal, Green Flashing = Pump Running, Red Flashing = High/Low Alarm Level
  • High Decible Audible Buzzer (100 dB)
  • Check It™ Self Diagnosing System - One Touch Troubleshooting
  • Alternating Relay - Automatically Alternates Pumps Each Cycle
  • Pump Run Indicator Light
  • Pump HAND / OFF / AUTO Toggle Switch
  • Alarm RUN / TEST / MUTE Toggle Switch
  • IEC Motor Contactors (2,000,000 cycle rating)
  • Motor Circuit Breaker
  • 3 Amp Control Fuse
  • Includes Dry Contacts - NO/NC Alarm and Power Loss Contacts, NO/NC Pump Run Contacts
  • Color Coded Wiring / Field Wiring Terminal Strips
  • Dimensions: 16.00'' T x 12.75'' W x 7.5'' D
  • NEMA 4X Enclosure, UL 508A Listed
  • Three Year Warranty

Alderon Duplex Control Applications

  • NEMA 4X Enclosure for Outdoor Installations
  • Used to control a pump station with two submersible pumps
  • Monitors liquid levels and gives alarm for high water
  • Alternating relay automatically switches pump every cycle
  • LAG ON options allows the secondary pump to come on in event the primary pump malfunctions
  • Check It™ One Touch Diagnostics - Troubleshoot your problem with one push of a button!

Alderon Check It Duplex Control Panel Downloadable Documents

FileName
Check It 1P Duplex Series SpecificationViewDownload
Check It Quick Installation GuideViewDownload
