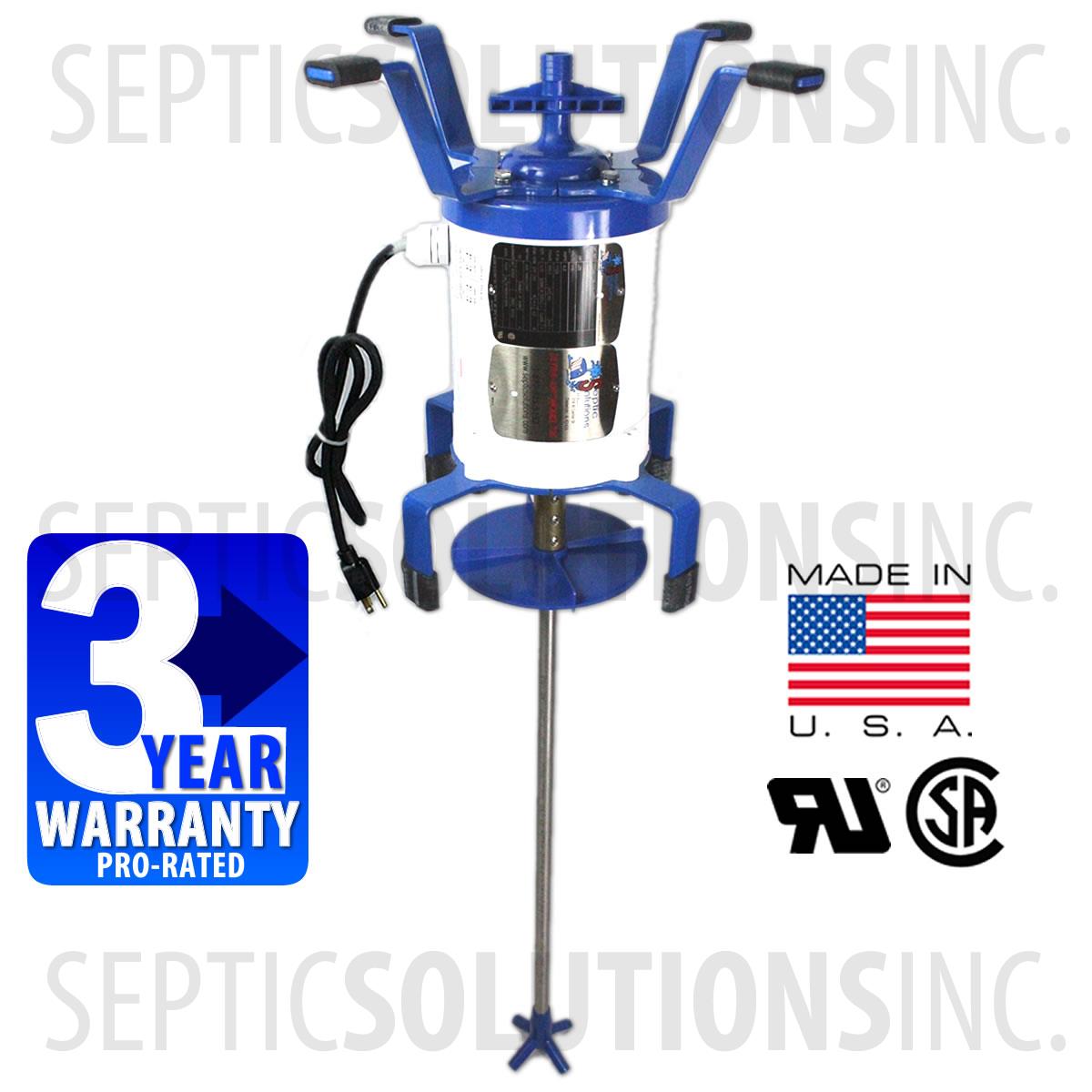

Ultra-Air Model 735 BLUE Flood Resistant Septic Aerator - Alternative Replacement for Norweco Aerators

The Ultra-Air® Model 735 BLUE is a compatible alternative replacement septic tank shaft aerator for Norweco Singulair systems. This FLOOD RESISTANT model includes the White Splash Flood Resistant Motor which is better protected from system backups! The 735 BLUE model has 14'' top brackets that are designed to fit a 12'' diameter opening. It is a complete compatible replacement for Norweco Singulair OEM model 96, model 960, model 206c, model 780, and other Norweco Singulair aerators. The Ultra-Air® Model 735 BLUE is made 100% in the USA. The unit is brand new and comes with a Three Year Pro-Rated Limited Warranty.

In Stock

$545.00MSRP: $675.00

Item #:UA14B-FR

Manufacturer: Septic Solutions

ULTRA-AIR® MODEL 735 BLUE FR SPECIFICATIONS

Alternative Replacement for Norweco Singulair Aerators
WHITE SPLASH Flood Resistant Motor

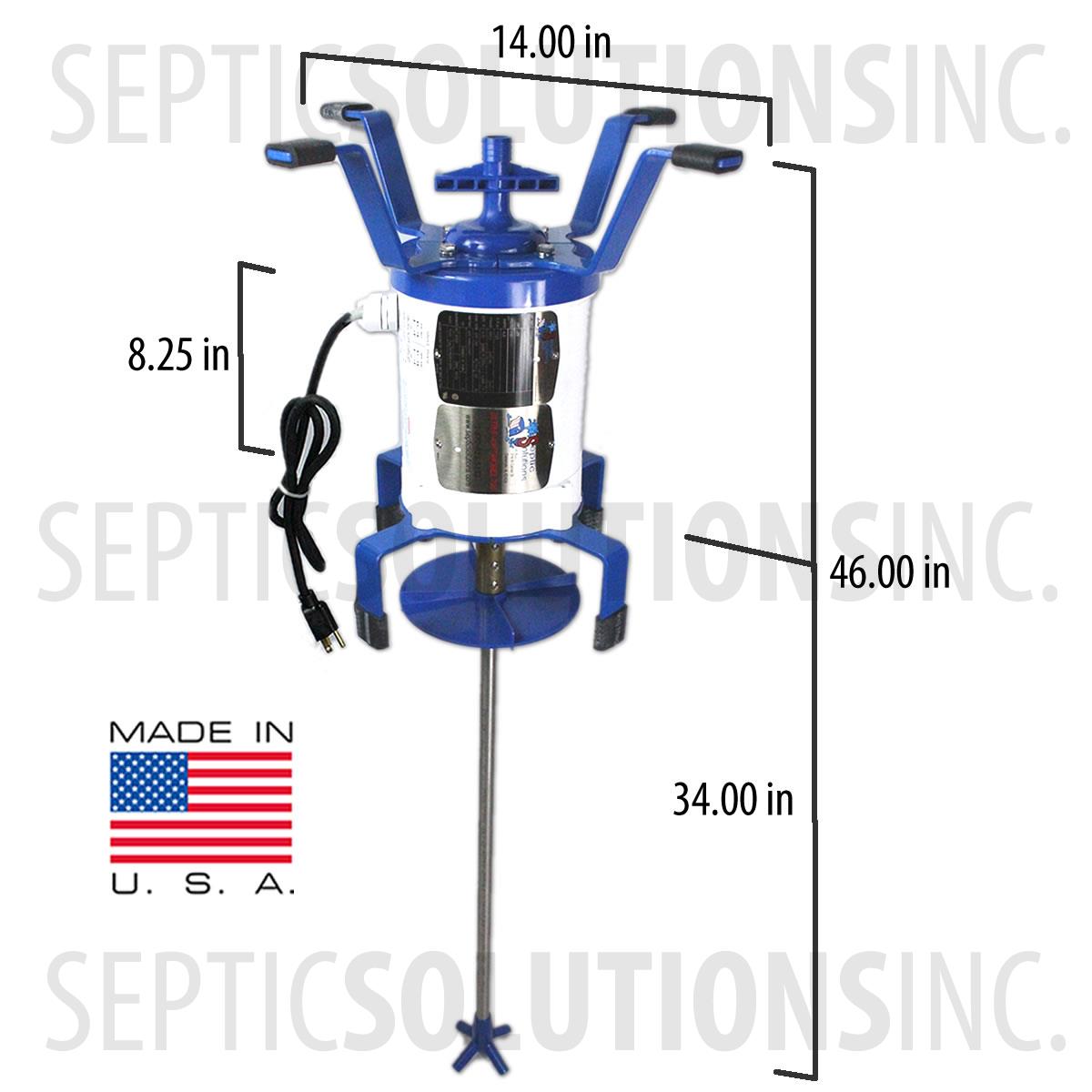

14'' Brackets Fit a 12'' Diameter Opening
1/4 HP Baldor Electric Motor - Made In The USA!
115VAC, 60 Hz, 1725 RPM
4.6 FLA, 3.5A Operating Current
Aerodynamic Aspirator Tip
Balanced 5/8'' Stainless Steel Shaft

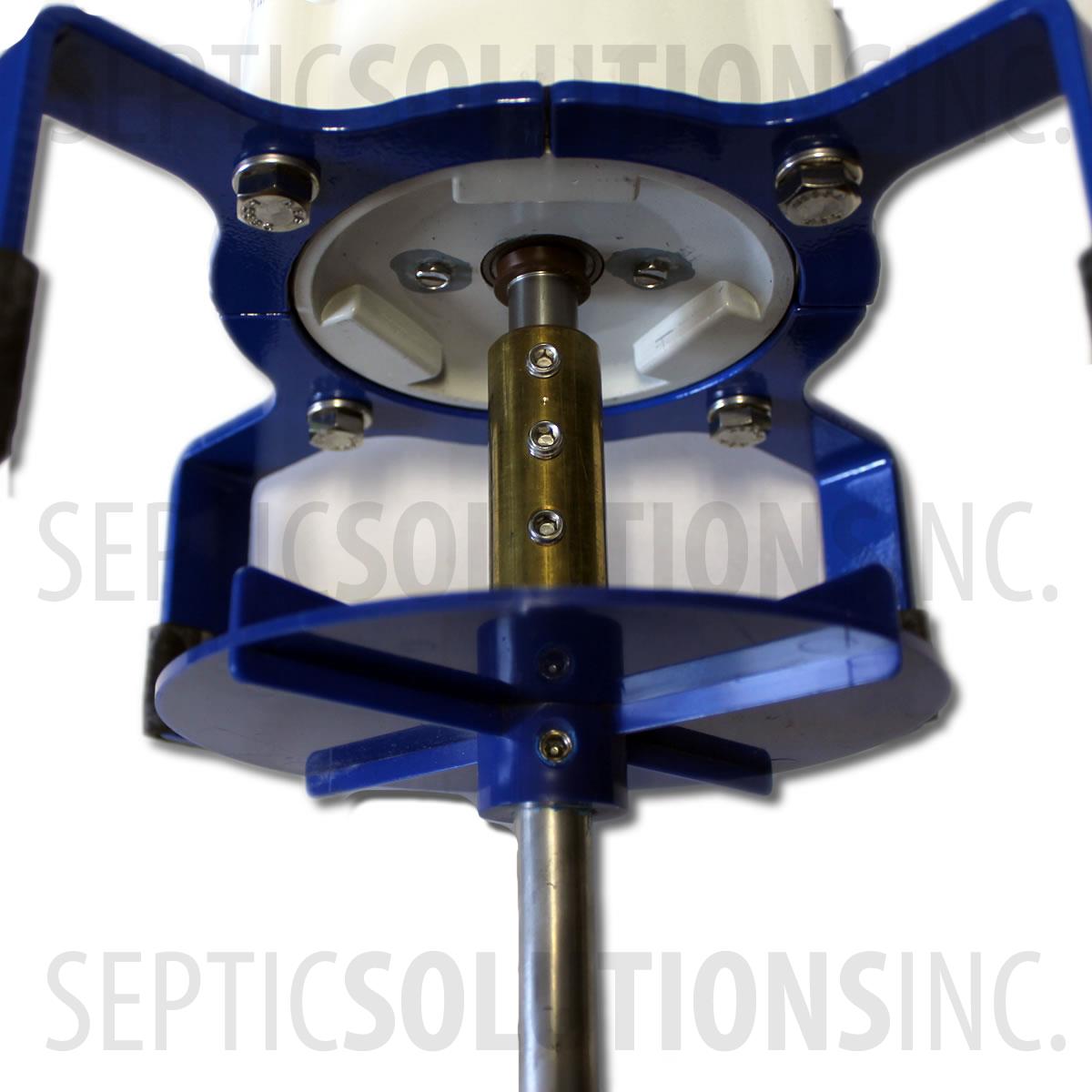

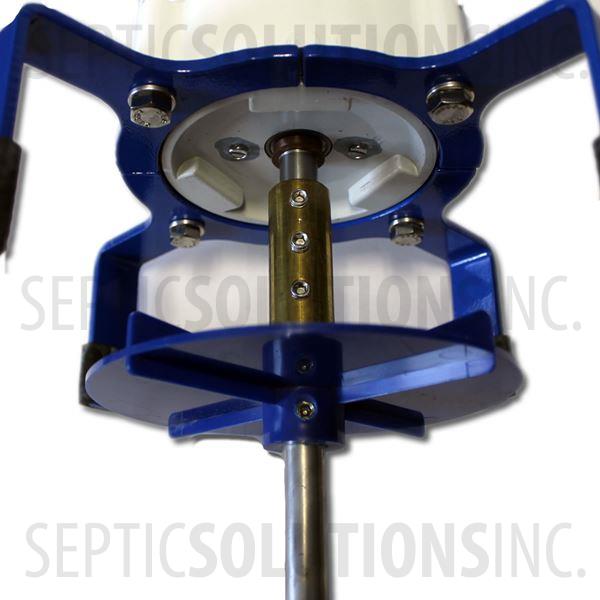

Brass Coupling with Set Screws
Large Plastic Suds Restrictor
Powder Coated Steel Brackets
Rubber Vibration Control Feet
Plastic Motor Shield with Handle

Runs on a 4 to 7 Amp Circuit
Works with Norweco Singulair OEM Control Panels
Designed For Continous Operation
Includes 3ft Power Cord with Plug
14'' Brackets fit a 12'' Diameter Opening
Not tested or approved by NSF
Made 100% in the U.S.A.
Replacement Parts Available
Replacement Alarms and Control Panels are also available
Very Easy To Install! - Simply lower the motor into the tank by the handle and plug it in!
Motor shield protects the motor from moisture and tank debris
Condition: NEW
WHALE OF A DEAL - 3 YEAR PRO-RATED LIMITED WARRANTY!

The Ultra-Air is an aftermarket replacement that has not been tested or approved by NSF as is required in some areas. It is the sole responsibility of the purchaser to check with their local regulatory authorities to ensure compliance.

THE WHITE SPLASH FLOOD RESISTANT MOTOR

The Ultra-Air Flood Resistant White Splash Motor is the only Flood Resistant Aftermarket Shafted Aerator available today. It is designed as an Alternative Replacement for and Comparable to other Manufacturer’s units.

The Flood Resistant Ultra-Air™ was not designed to be a submersible aerator. A submersible aerator will operate continuously under water for the life of the aerator. The Flood Resistant Ultra-Air™ was designed to handle intermittent and occasional high water problems as mentioned on the “examples” below. In most instances it will handle periodic high water levels and keep on working. The Flood Resistant Ultra-Air™ is designed to handle those brief high water problems that could occur in your tank. Naturally you will not be able to use your system under these high water conditions as there is nowhere for the water from your home to go and could cause backup into the home. This will ensure that you will fix the problem quickly, within a day or two, and once that problem has been resolved can expect your Ultra-Air™ Flood Resistant Aerator to keep on working.

Septic Solutions is continually working to be able to provide our customers with the latest and most innovative products available in the septic market today. The Ultra-Air™ Flood Resistant Aerator is yet another great example of that. If you are concerned about your Aerator flooding you now have the option to purchase the only Aftermarket Flood Resistant Shafted Aerator available anywhere. Septic Solutions is very proud to offer our latest inventive product the Ultra-Air™ Flood Resistant White Splash. If flooding has never been a problem then our Standard Ultra-Air™ Model 735 is a great option. The choice is now yours to make.

WHAT IS DIFFERENT BETWEEN THE STANDARD AND THE FLOOD RESISTANT MODELS?

The Ultra-Air Model 735 Flood Resistant motors include motor upgrades to help it better handle high water events. These upgrades include grease filled and packed bearing housings to keep water away from the bearings, epoxy coated windings to prevent water from damaging the windings, and a shaft seal along with water resistant paint to prevent external water intrusion.

WHO NEEDS THE FLOOD RESISTANT ULTRA-AIR®?

The majority of owners with a septic tank shaft aerator do not necessarily need a Flood Resistant Ultra-Air™. However there are occasions when a Flood Resistant Ultra-Air™ can be beneficial.

EXAMPLE 1:

Your system may be working fine for a number of years and all of a sudden you get a 6 inch rain in a couple of hours. This may be rare but does happen. Your system drains into a field absorption system and your yard is fairly flat. A very heavy rain can flood your field and potentially cause the excess surface water to drain from the field back into your aerobic system raising the water level inside your tank. If the water level gets high enough to get into your motor and it is not Flood Resistant your motor will most definitely fail. The Ultra-Air™ White Splash was designed to better handle these types of situations without damaging the motor.

EXAMPLE 2:

Your system has a lift station and an effluent pump that pumps to a field absorption system, spray irrigation system, drip system, mound system, or something else. These systems are designed to have an alarm that will notify you if the water gets high in the lift station. If for any reason this alarm does not notify you of the fact that the lift pump has quit and the water level is rising in the lift station (alarm turned off—bad alarm wire—bad alarm, etc.) then as you continue to use water in your home and send it out to the septic system where it is not getting pumped away the water level will rise in the lift station and begin backing up into the aerobic system. After only a short period of time the water level could easily rise up and into your aerator motor and ruin it. The Ultra-Air™ White Splash was designed to better handle these types of situations without damaging the motor.

EXAMPLE 3:

Your system has some type of filter that could become clogged over time. After only a short period of time the water level could easily rise up and into your aerator motor. The Ultra-Air™ White Splash was designed to better handle these types of situations without damaging the motor.

EXAMPLE 4:

Your system has been working fine for a number of years. For some unknown reason the 4 inch pipe exiting your aerobic system becomes clogged or even collapses. Just like the scenarios listed above and somewhat similar to putting a drain stopper in your kitchen sink the water level will rise in your tank and could easily get into your aerator motor. The Ultra-Air™ White Splash was designed to better handle these types of situations without damaging the motor.

SPECIAL NOTE: The White Splash Flood Resistant motor is designed to better handle high water events that can possibly happen during a malfunction of your aerobic treatment system, however the motor is not a submersible motor or "flood proof" and repeated high water events or extended periods of time with high water can still cause this motor to fail.

MADE 100% IN THE USA!

The Ultra-Air Model 735 aerator is made 100% in the USA! The electric motors are made specially for Septic Solutions by Baldor Electric Motor Company in FT. Smith, Arkansas. The plastic parts are manufactured in Indiana from molds owned by Septic Solutions, Inc. The brackets are stamped, bent, and powder-coated right here in our hometown of Dieterich, Illinois. The shaft and brass couplings are also machined right here in our hometown of Dieterich, Illinois. The units are assembled, boxed, and shipped from here at our facility in Dieterich, Illinois. With the Ultra-Air Model 735 you are getting a quality product that has been completely manufactured and assembled from start to finish 100% in the USA!

Norweco is a Registered Trademark of Norwalk Wastewater Equipment Company, Inc.

Please Review Our Disclaimer before making any purchases

Septic Solutions, Inc. purchased these Ultra-Air air pumps directly from Ultra-Air's authorized distributor. Septic Solutions, Inc. is offering these pumps and parts as alternative replacements that are comparable to your existing Jet aerator, Norweco aerator, or other Septic Tank aerator. The Ultra Air was not tested on an NSF Certified Aerobic system as is required in some areas. It is the sole responsibility of the purchaser to check with their local regulatory authorities to ensure compliance.

ULTRA-AIR® MODEL 735 RED ADVANTAGES

MADE 100% IN THE USA!

FLOOD RESISTANT MODELS AVAILABLE!

The Ultra-Air® Model 735 is the only aftermarket product available with a Flood Resistant motor. The White Splash Flood Resistant unit uses the same Baldor 1/4 HP electric motor, but this motor is specially sealed and can withstand being partially submerged for intermittent periods of time.

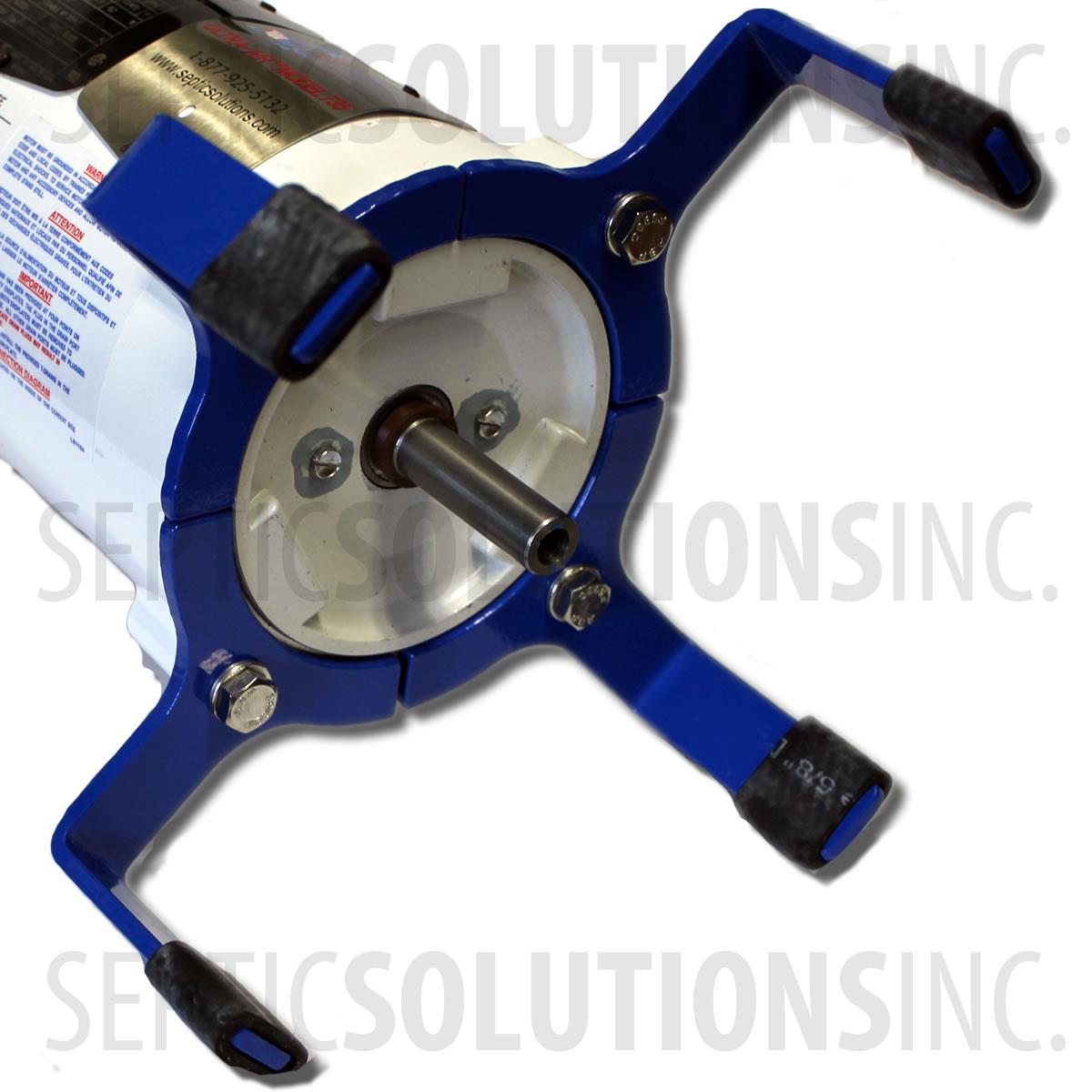

WELD-FREE BRACKET SYSTEM

The Ultra-Air® Model 735 uses an eight-piece bracket system (4 top, 4 bottom) with no welds. Some units available on the market use a four-piece bracket system that includes spot welds that hold the bottom and top supports together. These spot welds create a weak point in the bracket system and can cause the brackets to fail over time when exposed to the high moisture tank environment and the constant vibration of the motor.

If the brackets fail, you would lose your motor in the bottom of your tank. Our bracket system contains zero welds and zero weak points and will not fail over time.

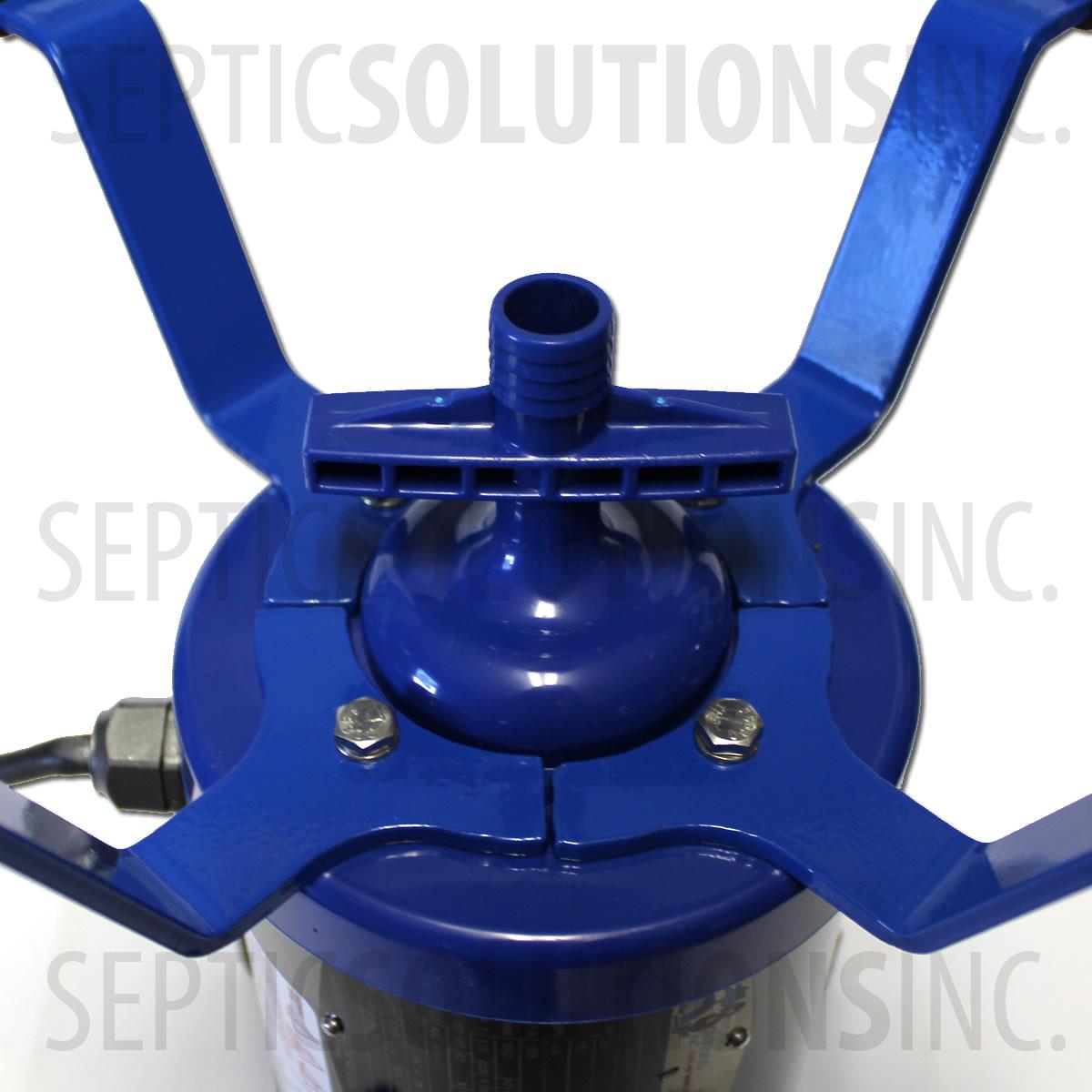

MOTOR SHIELD/HANDLE WITH FRESH AIR HOSE BARB

The Ultra-Air® Model 735 comes with a motor shield that includes a handle and a fresh air hose barb. The handle allows for easy installation and maintenance of your aerator. The air hose barb allows you to attach a hose from the top of the motor going out the vented lid in your tank to always ensure the motor is pulling fresh oxygen into your system. The specially designed handle will ensure that you can easily place your motor both in and out of the tank without damaging and potentially bending the shaft which would significantly reduce the life of your motor. The motor shield incorporated into the handle will also better protect the motor from the harsh environment found inside the tank. Many of the competitive brands do not have these very important features.

LARGE 5'' SUDS RESTRICTOR

The Ultra-Air® Model 735 comes with a large 5'' suds restrictor. The suds restrictor is designed to set above the water level in the tank and prevent foam and suds from getting up into the electric motor. The 2'' - 3'' suds restrictor on other models available on the market are not adequate to truly protect the motor from foam and suds. The suds restrictor can also act as a high water alarm. If the water level gets above the suds restrictor, it will cause the motor to pull high amps and trip the reset in your control panel. This will signal an alarm and let you know there is an issue.

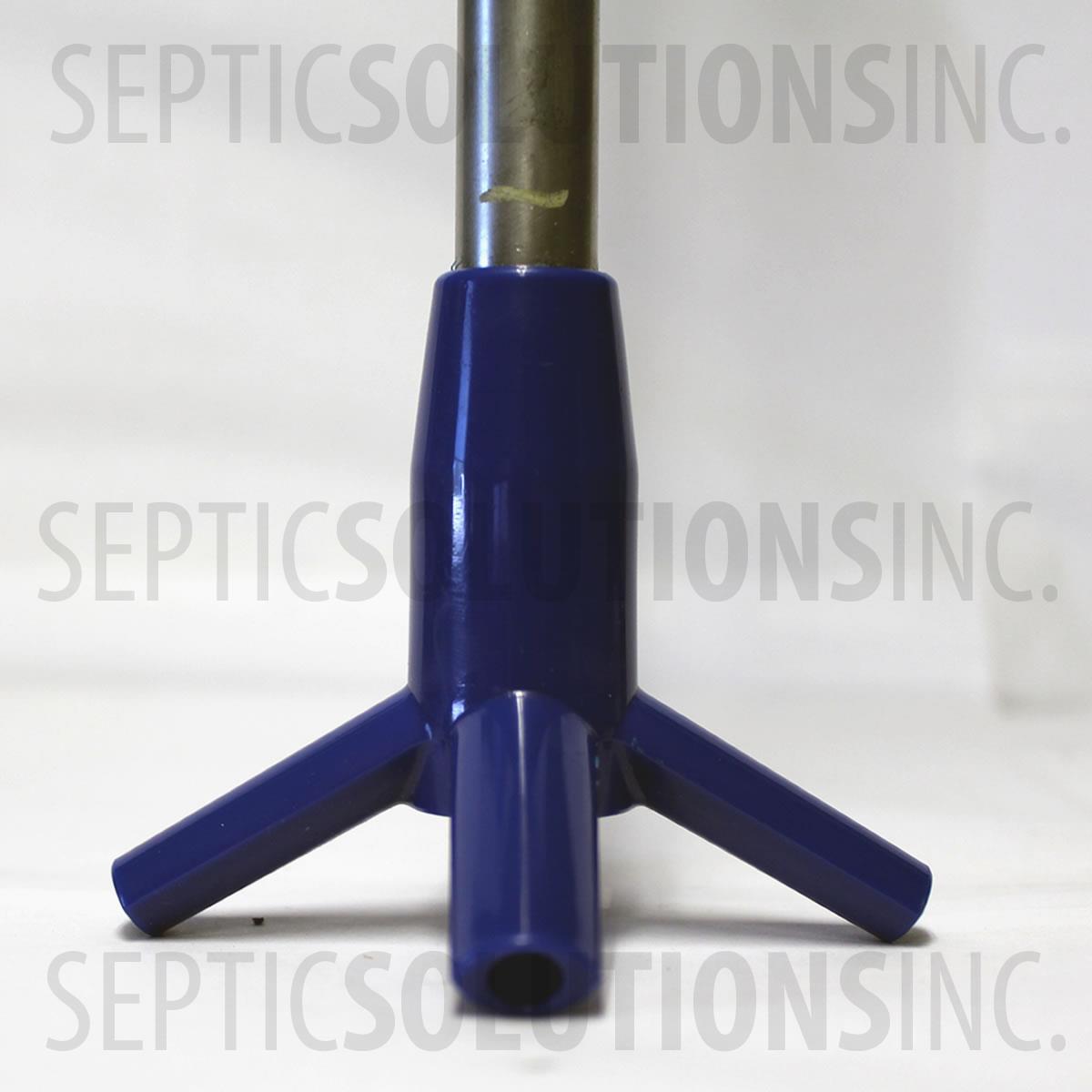

AERODYNAMIC ASPIRATOR THAT IS TRUE TO THE OEM DESIGN

Our revolutionary Aerodynamic Aspirator performs true to OEM airflow specifications and requirements but provides nearly 25% reduction in drag on the motor. This leads to longer motor life and less electricity usage while not sacrificing performance.

The new aspirator design is extremely important. The 4-prong design promotes better stirring action and more oxygen diffusion in the tank. The longer prongs push air bubbles at a higher volume, deeper into the liquid waste, providing a much better aeration effect versus the "old-style" aspirator tips. The photo to the right shows the "old-style" (pictured left) next to the new Aerodynamic Aspirator (pictured right).

Without enough oxygen your aerobic system will not produce the high quality of effluent required in most States. This "older-style" of an aspirator was abandoned by the Original Equipment Manufacturers some 20 years ago due to its inability to draw enough oxygen into the system. A properly working system is important to our environment.
